Dimensions/weight

• Console:6.5 cm H x 40.59 cm W x 25.8 cm D (4 kg)
• Jewel Cube speakers (each):15.88 cm H x 6.98 cm W x 6.98 cm D (0.46 kg)
• Jewel Cube centre speaker:6.76 cm H x 15.37 cm W x 6.53 cm D (0.47 kg)
• Acoustimass wireless bass module:32.5 cm H x 29.5 cm W x 29.5 cm D (13.6 kg)
• Wireless receivers for rear speakers:4.1 cm H x 16.6 cm W x 7.8 cm D (0.28 kg)

Additional details

• Supported audio formats: Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS, Multichannel PCM.
• Video source compatibility: Support for six 4K/60 video sources (HDMI 2.0/HDCP 2.2)

Inputs and outputs

Rear panel of the console

• 1 HDMI™ output with Audio Return Channel (ARC)
• 5 HDMI inputs
• 2 optical digital audio connections
• 2 coaxial digital audio connections
• 2 analogue L/R audio inputs
• 1 x 3.5 mm connection for the Acoustimass module
• 1 data port
• 1 IR repeater port
• 1 Ethernet port for SoundTouch and software updates via a network
• 1 USB connection for software updates only

Front of the console

• 1 HDMI input
• 1 x 3.5 mm jack for ADAPTiQ system and headphones
• 1 power button
• 1 source button
• 1 system setup button

What’s in the box?

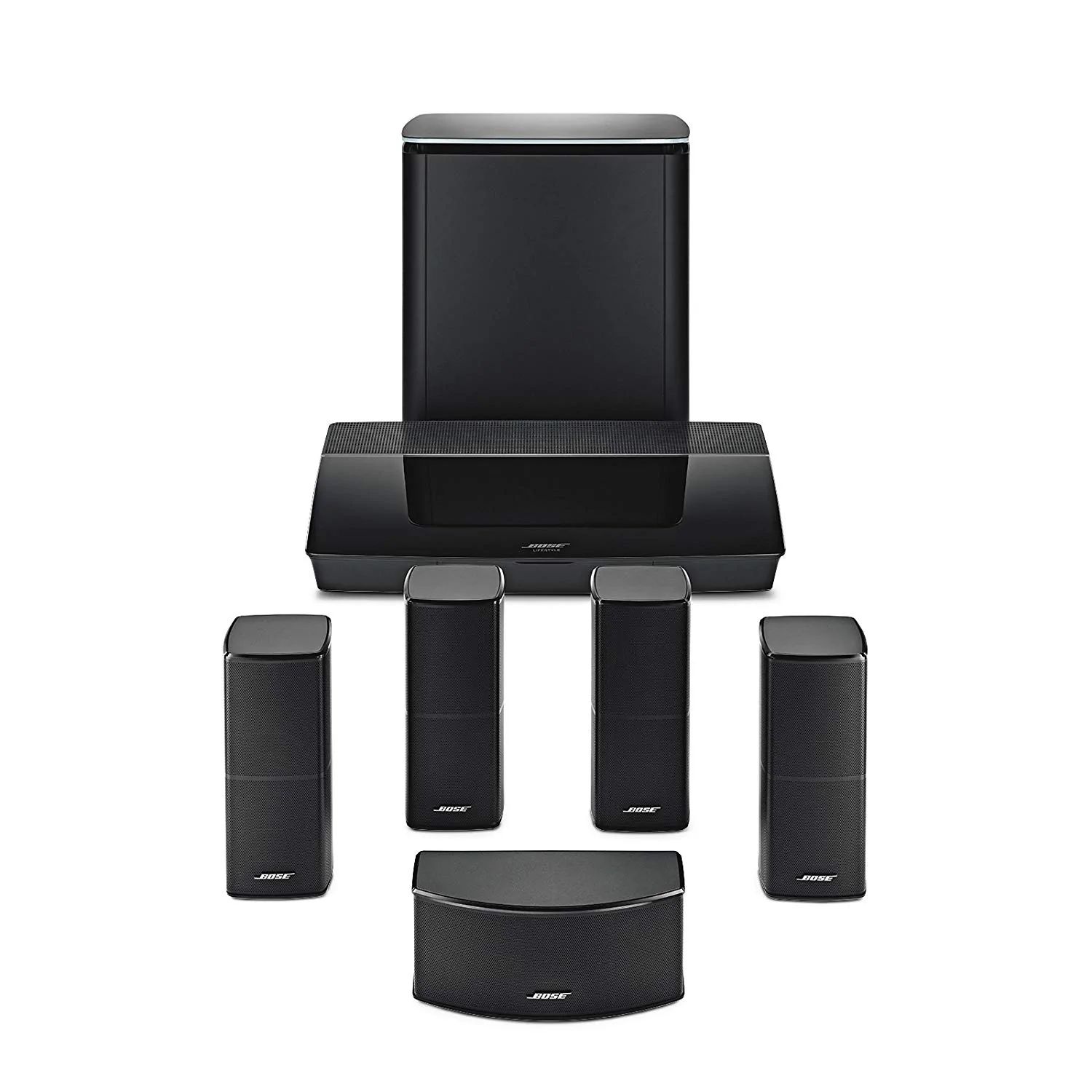

• Console
• 4 Jewel Cube speakers
• Jewel Cube centre speaker
• Acoustimass wireless bass module
• Universal remote control
• Front speaker cable
• 2 rear speaker cables
• 5 AC-2 adapters
• 2 wireless receivers
• ADAPTiQ headset
• IR emitter
• HDMI cable
• 4 AA batteries
• Console power supply
• 4 power cables
• Screwdriver
• Owner’s guide
