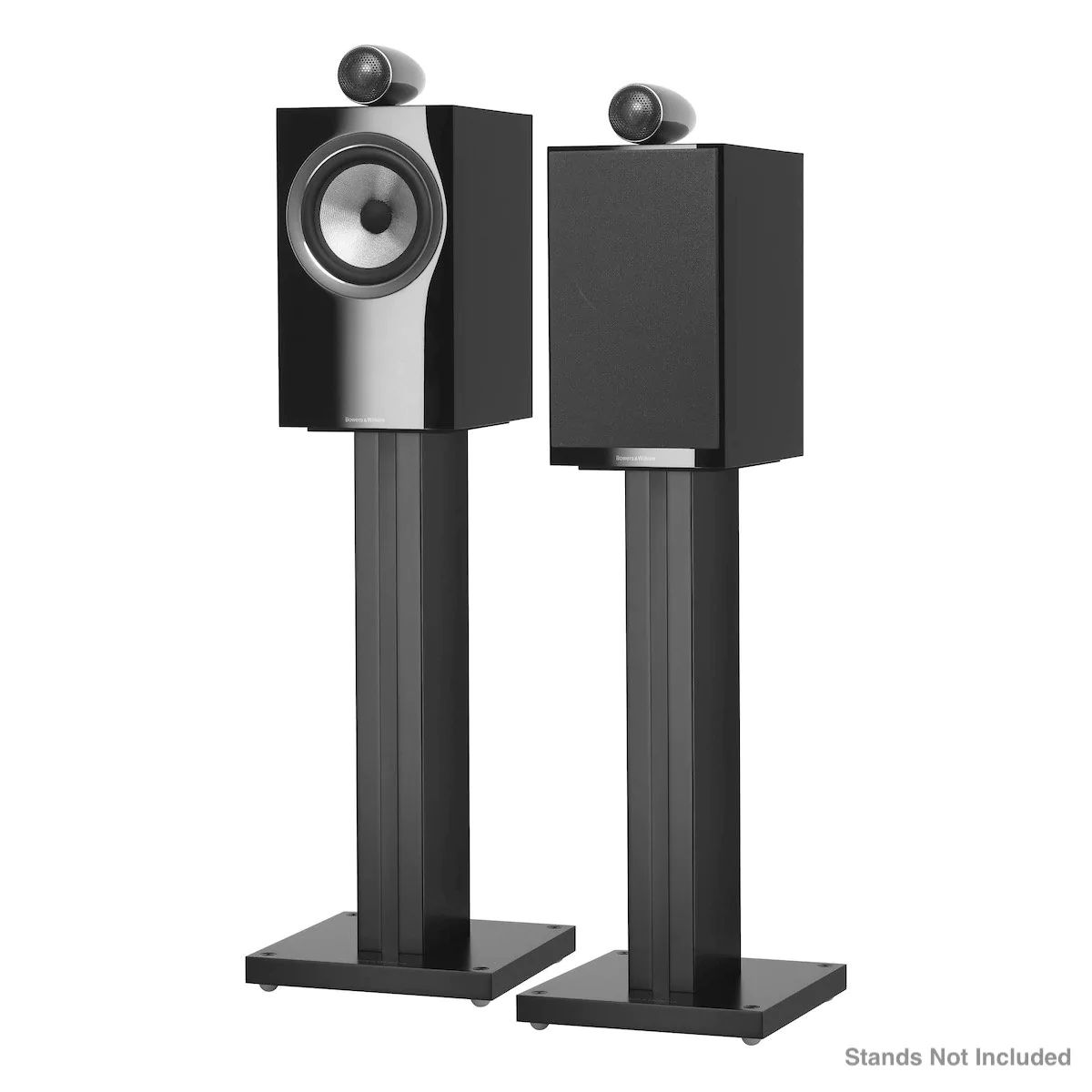

Model

705 S2

Description

2-way vented-box system

Features

• Decoupled Carbon Dome tweeter
• Solid Body Tweeter-on-Top
• Continuum™ cone bass / midrange
• Flowport™

Drive units

• 1x ø25mm (1 in) Decoupled Carbon Dome high-frequency
• 1x ø165mm (6.5 in) Continuum cone bass / midrange

Frequency range

-6dB at 45Hz and 33kHz

Frequency response

50Hz - 28kHz ±3dB

Sensitivity

88dB spl (2.83Vrms, 1m)

Harmonic distortion

• 2nd and 3rd harmonics (90dB, 1m)
• <1% 100Hz - 22kHz
• <0.5% 150Hz - 20kHz

Nominal impedance

8Ω (minimum 3.7Ω)

Recommended amplifier power

30W - 120W into 8Ω on unclipped programme

Dimensions

• Height: 340mm (13.4 in) cabinet only 407mm (16 in) including tweeter
• Width: 200mm (7.8 in)
• Depth: 285mm (11.2 in) cabinet only, 301mm (11.9 in) including grille and terminals

Net weight

9.3kg (20.5 lb)

Cabinet finishes

• Gloss Black
• Satin White
• Rosenut

Grille finishes

• Black
• Grey (Satin White only)
