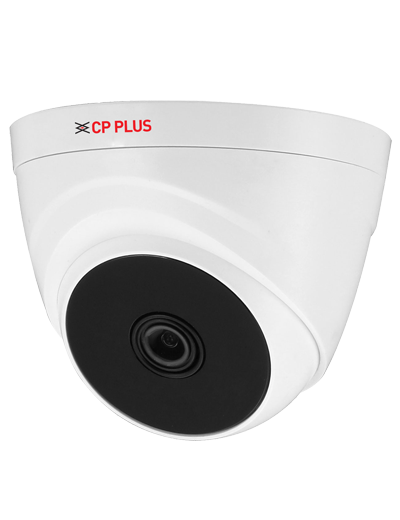

SKU: CP-URC-DC24PL2-V3
Categories: CP PLUS, CP PLUS 2.4 HD CCTV CAMERA PRICE LIST
| Image Sensor | 1/2.7" 2.4 PS CMOS (0.9407 cm) |
| Minimum Illumination | 0.04Lux/F1.85, 30IRE, 0Lux IR on |
| Shutter Speed | PAL: 1/25s–1/100000s ; NTSC: 1/30s–1/100000s |
| White Balance | Auto / Manual |
| Gain Control (AGC) | Auto / Manual |
| ICR | Auto (ICR)/Manual |
| Lens | 3.6mm (2.8mm, 6mm optional) |
| Max Aperture | F1.85 |
| Auto Iris | Fixed |
| Lens Type | Fixed lens/ Fixed Iris |
| S/N Ratio | More than 65dB |
| DORI Distance | Detect: 2.8mm: 37m; 3.6mm: 51m, 6mm: 80m, Observe: 2.8mm: 15m; 3.6mm: 20m, 6mm: 32m, Recognize: 2.8mm: 8m; 3.6mm: 10m, 6mm: 16m, Identify: 2.8mm: 4m; 3.6mm: 5m, 6mm: 8m |
| Back Light Compensation | BLC / HLC / DWDR |
| Video Streaming | 2.4MP@25/30fps, 25/30/50/60fps@720P |
| Angle of View | H: 93° (103°, 54.7°) |
| IR | IR Range of 20 Mtr., Smart IR |
| Casing | Plastic |
| Operating Temperature | -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH |
| Power Source | 12V DC ±30% |
| Power Consumption | Max 2.3W (12V DC, IR on) |
| Weatherproof Standard | N/A |
| Dimension | 85mm x 85mm x 69mm |
| Weight | 0.09Kg |
