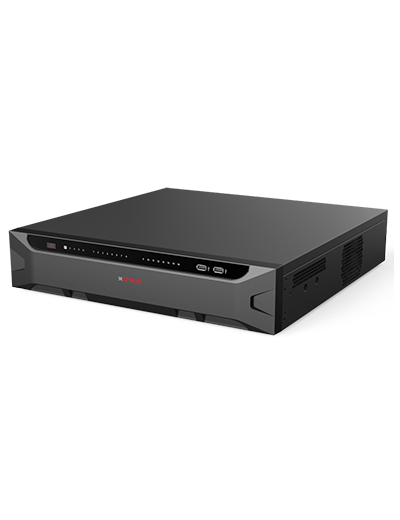

Overview: The CP Plus CP-UNR-4K564R8-FI is a high-performance 64-channel AI-enabled Network Video Recorder (NVR) designed for large-scale surveillance systems. With advanced AI capabilities, robust storage options, and support for high-resolution video, it is ideal for enterprise-level security applications.
Key Features:
64-Channel IP Camera Input: Supports up to 64 IP cameras, accommodating extensive surveillance setups.
High Bandwidth Capacity: Handles up to 384 Mbps for incoming, recording, and outgoing data streams.
Advanced Video Compression: Supports Instastream, H.265, H.264+, H.264, and MJPEG codecs for efficient storage and streaming.
AI by Recorder:
2-channel face detection and recognition.
Up to 20 face databases with 20,000 face images.
4-channel perimeter protection.
8-channel Smart Motion Detection (SMD) Plus.
AI by Camera:
Face detection and recognition.
Perimeter protection.
SMD Plus.
Metadata analysis.
Automatic Number Plate Recognition (ANPR).
Stereo analysis.
Heat map generation.
People counting.
Storage Capacity: Supports up to 8 SATA hard drives, each up to 20TB, allowing for extensive video storage.
RAID Support: Compatible with RAID 0/1/5/6/10 configurations for data redundancy and performance.
Video Output: Equipped with 2 HDMI and 2 VGA ports, supporting resolutions up to 3840 × 2160.
User Interface: Accessible via web interface and local GUI for flexible management.
Mobile & CMS Support: Compatible with iCMOB and gCMOB mobile applications, and KVMS Pro Lite CMS software for centralized monitoring.
Technical Specifications:
Processor: Industrial-grade processor.
Operating System: Embedded LINUX.
Decoding Capability:
AI Disabled: Up to 32 channels at 1080p@30fps.
AI Enabled: Up to 24 channels at 1080p@30fps.
Video Display Split: Main screen: 1/4/8/9/16/25/36/64; Sub screen: 1/4/8/9/16.
Face Detection Performance:
By Recorder: 2 channels, up to 12 face images per second per channel.
By Camera: Up to 16 channels.
Face Database Capacity: Up to 20 databases with a total of 20,000 images.
Power Supply: AC 100~240V, 50/60 Hz.
Power Consumption: Maximum 16.7W (without HDD).
Operating Temperature: -10°C to +55°C.
Dimensions: 440mm × 450.1mm × 95mm.
Weight: 6.55 kg (without HDD).
Applications:
Enterprise-level surveillance systems.
Critical infrastructure monitoring.
Large commercial complexes.
City surveillance and traffic management.
Note: Product specifications are subject to change without prior notice.
