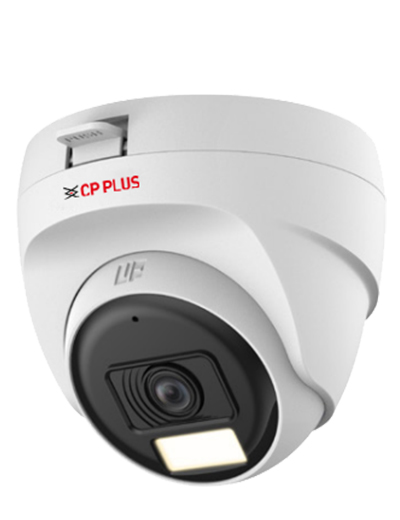

The CP-URC-DC51PL3C-L is a 5MP Dual Light Dome Camera from CP PLUS, designed for high-definition surveillance with enhanced night vision capabilities. It combines infrared and warm light technologies to deliver clear images in various lighting conditions.
📷 Camera Specifications
Image Sensor: 5MP PS CMOS Image Sensor
Maximum Resolution: 2880 (H) × 1620 (V)
Minimum Illumination:
Color: 0.02 lux @ F2.0 (30 IRE)
B/W: 0.002 lux @ F2.0 (30 IRE)
0 lux with IR on
Shutter Speed:
PAL: 1/25 s–1/100,000 s
NTSC: 1/30 s–1/100,000 s
White Balance: Auto, Area white balance
Lens Options: Fixed 3.6mm lens
Maximum Aperture: F2.0
Lens Mount: M12
Close Focus Distance:
3.6mm: 1.3 m
2.8mm: 1.0 m
Angle of View:
3.6mm: Horizontal 92°, Vertical 48°, Diagonal 109°
2.8mm: Horizontal 106°, Vertical 56°, Diagonal 125°
DORI Distance (3.6mm lens):
Detect: 76.0 m
Observe: 30.4 m
Recognize: 15.2 m
Identify: 7.6 m
Backlight Compensation: BLC / HLC / DWDR
Noise Reduction: 2D DNR
Day/Night Functionality: Auto (ICR) / Color / B/W
Mirror Function: Supported
Privacy Masking: Up to 8 areas (rectangular)
Audio: Built-in Microphone
🔌 Video & Connectivity
Video Output: Selectable CVI / TVI / AHD / CVBS via one BNC port
Supported Resolutions:
5M (2880 × 1620)
4M (2560 × 1440)
2M (1920 × 1080)
960H (960 × 576 / 960 × 480)
Frame Rates:
CVI: PAL 5M@25 fps, 4M@25 fps, 2M@25 fps; NTSC 5M@25 fps, 4M@30 fps, 2M@30 fps
AHD: PAL 4M@25 fps; NTSC 4M@30 fps
TVI: PAL 4M@25 fps; NTSC 4M@30 fps
CVBS: PAL 960H; NTSC 960H
⚙️ Mechanical & Environmental
Casing: Plastic
Dimensions: 85 mm × 77.1 mm
Weight: 0.11 kg
Power Supply: 12V DC ±30%
Power Consumption: Max 2.6W (with WLED on)
Operating Temperature: -40°C to +55°C (-40°F to +131°F)
Operating Humidity: <95% RH (non-condensing)
Storage Temperature: -40°C to +55°C (-40°F to +131°F)
Storage Humidity: <95% RH (non-condensing)
Ingress Protection: IP67 rated for outdoor use
🌟 Additional Features
Dual Light Night Vision: Combines infrared and warm light for superior night vision, providing clear images in complete darkness and enhanced visibility in low-light conditions.
Active Deterrence: Features warm LED lights that activate in real-time to deter intruders, enhancing security by preventing potential threats before they escalate. Note: Active deterrence functions require SMD-supported DVRs.
All-in-One HD Camera: Supports multiple video formats (HDCVI, HDTVI, AHD, CVBS) over a single coaxial cable, ensuring compatibility with various DVRs.
Built-in Microphone: Captures high-quality audio, adding an extra layer of security by recording sound along with video.
Long-Distance Transmission: Capable of transmitting video signals over extended distances without quality loss, ensuring reliable and clear footage from remote locations.
For more detailed information, you can refer to the official product page: CP-URC-DC51PL3C-L-V2.
If you need assistance comparing this model with other CP PLUS cameras or have specific requirements, feel free to ask!
