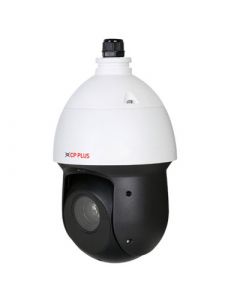

SKU: CP-UNP-D2521L10-DP
Categories: CP PLUS, CP PLUS IP CCTV CAMERA PRICE LIST
| Image Sensor | 1/2.8” 2MP PS CMOS (0.9071 centimeters) |
| Effective Pixels | 1920(H) x 1080(V), 2 Megapixels |
| Resolution | 2MP |
| S/N Ratio | More than 50dB |
| Minimum Illumination | Color: 0.005Lux@F1.6; B/W: 0.0005Lux@F1.6; 0Lux@F1.6 (IR on) |
| Focal Length | 4.8mm~120mm |
| White Balance | Auto, ATW, Indoor, Outdoor, Manual |
| Max Aperture | F1.6 ~ F4.4 |
| Focus Control | Auto / Manual |
| Close Focus Distance | 100mm~ 1000mm |
| Angle of View | H: 62.8° ~ 2.6° |
| Iris | Auto/Manual |
| DORI Distance | 1613m(Detect) 646m (Observe) 323m (Recognize) 161m (Identify) |
| AGC Control | Auto / Manual |
| Back Light Compensation | BLC / HLC / WDR(120dB) |
| ROI | Support |
| Motion Detection | Support |
| Optical Zoom | 25X |
| Shutter Speed | 1/1s~1/30,000s |
| Digital Zoom | 16x |
| Pan Travel | 0°~360° endless, Pan Speed: 0.1° ~ 200°/sec |
| Tilt Travel | -15° ~ 90° auto flip 180°, Tilt Speed: 0.1° ~120°/sec |
| Manual Speed | Pan: 0.1° ~200° /s; Tilt: 0.1° ~120° /s |
| Presets | 300 |
| Preset Speed | Pan: 240° /s; Tilt: 200° /s |
| Power up Action | Auto restore to previous PTZ and lens status after power failure |
| Idle Motion | Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period |
| Day/Night: IR Cut Filter | Auto(ICR) / Color / B/W |
| Video Compression | H.265+/H.265/H.264+/H.264 |
| Event Trigger | Motion detection, Video tampering, Network disconnection, IP address conflict, Illegal access, Storage anomaly |
| Video Streaming | Main stream: 1080P/720P(1 ~ 25/30fps) Sub stream1: D1/CIF(1 ~ 25/30fps) Sub stream2: 720P/D1/CIF(1 ~ 25/30fps) |
| Audio Compression | G.711a/G.711Mu/G.726/AAC |
| Special Features | IR Range upto 100m, Defog, Up to 300 Presets, 5 Pattern, 8 Tour, Auto Pan , Auto Scan |
| Audio Streaming | 1/1 channel In/Out |
| Smart Detection | Tripwire, Intrusion, Abandoned/Missing, Face Detection |
| Networking | RJ-45 (10/100Base-T) |
| IVS | Tripwire, Intrusion,Abandoned/Missing, Face Detection |
| Protocols | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x, ONVIF Profile S&G, API |
| Alarm | 2/1 channel In/Out |
| IR Range | 100 Mtr. |
| Operating Temperature | -40ºC ~ 70ºC / Less than 95% RH |
| Smart Phone | iPhone, iPad, Android Phone |
| Memory Slot | Micro SD card 256GB |
| Weatherproof Standard | IP66 |
| Dimension | Φ160(mm) x 295(mm) |
| Power Source | DC 12V/3A, PoE+ (802.3at) |
| Power Consumption | 13W, 22W (IR on) |
| Casing | Metal |
| Weight | 3kg |
