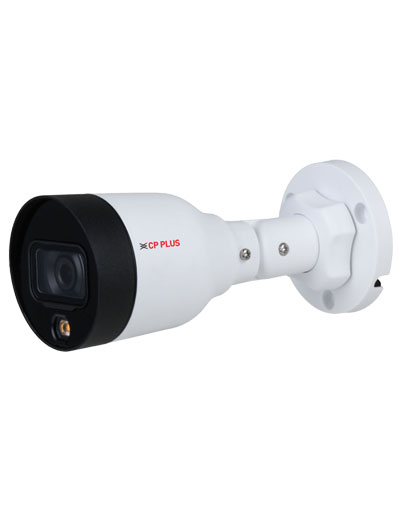

SKU: CP-UNC-TA21L2-GP
Categories: CP PLUS, CP PLUS IP CCTV CAMERA PRICE LIST
| Image Sensor | 1/2.7” 2Megapixel PS CMOS Image Sensor (6.858 centimeters) |
| Minimum Illumination | 0.005Lux@F1.6 |
| Effective Pixels | 1920 (H) x 1080 (V) |
| Lens | 3.6mm (2.8mm Optional) |
| Frame Rate | Main Stream: 1920 × 1080 (1 fps–25/30 fps) Sub stream: 704 × 576 (1 fps–25 fps) 704 × 480 (1 fps–30 fps) |
| Gain Control (AGC) | Auto/Manual |
| ICR | Color/B/W |
| Privacy Mask | 4 Area |
| S/N Ratio | N/A |
| Shutter Speed | Auto/Manual, 1/3~1/100000s |
| Angle of View | 3.6 mm: Pan 91° × Tilt 48° × Diagonal 109° ; 2.8 mm: Pan 110° × Tilt 59° × Diagonal 132° |
| Protocol | IPv4; IPV6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; NTP; DDNS ; Multicast, ONVIF (Profile S); CGI; P2P; Genetec |
| ROI | Yes (4 areas) |
| White Balance | Auto/natural/street lamp/outdoor/manual/regional custom |
| Motion Detection | Off / On (4 area, Rectangle) |
| Back Light Compensation | BLC / HLC / DWDR |
| Video Compression | H.265+/H.265/H.264+/H.264/H.264H; H.264B; MJPEG |
| Bit Rate | CBR/VBR |
| Operating Temperature | -40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH |
| Illumination Distance | 15 Mtr. |
| Smart Phone | iPhone, iPad, Android Phone |
| Power Source | 12V DC/PoE (802.3af) |
| Power Consumption | <4.8W |
| Ethernet | RJ-45 (10/100Base-T) |
| Casing | Metal + Plastic |
| Dimension | 162.6 mm × Φ70 mm |
| Weatherproof Standard | IP67 |
| Weight | 0.22kg |
