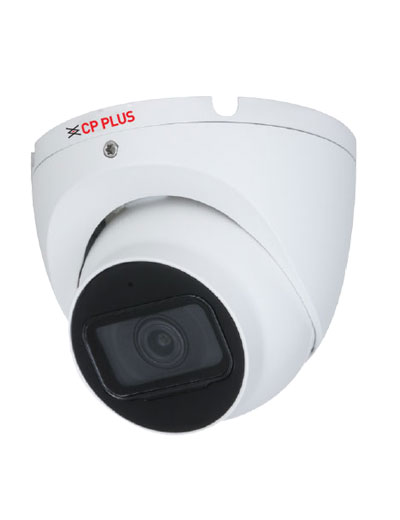

SKU: CP-UNC-DA81L3C
Categories: CP PLUS, CP PLUS IP CCTV CAMERA PRICE LIST
| Image Sensor | 1/2.7” 8MP PS CMOS Image Sensor (0.9407 centimetres) |
| Minimum Illumination | 0.04 Lux@F2.0 (Color, 30 IRE) 0.004 Lux@F2.0 (B/W, 30 IRE) 0 Lux (IR on) |
| Effective Pixels | 3840 (H) x 2160 (V) |
| BodyType | Dome |
| White Balance | Auto/natural/street lamp/outdoor/manual/regional custom |
| Lens | 3.6mm (2.8mm Optional) |
| Iris | Fixed |
| Close Focus Distance | 2.8mm: 1.0m ; 3.6mm: 1.9m |
| S/N Ratio | >56dB |
| Gain Control (AGC) | Auto/Manual |
| Shutter Speed | Auto/Manual, 1/3~1/100000s |
| Video Compression | Smart H.265+/H.265/Smart H.264+/H.264/ H.264B/ MJPEG (only supported by the sub stream) |
| Max Aperture | F2.0 |
| Angle of View | 3.6mm: Horizontal: 87°; Vertical: 47°; Diagonal: 104° 2.8mm: Horizontal: 105°; Vertical: 56°; Diagonal: 125° |
| Lens Type | Fixed-focal |
| Back Light Comp. | BLC/ HLC/ DWDR |
| Frame Rate | Main stream: 3840 × 2160 (1 fps–15 fps) 2688 × 1520 (1 fps–25/30 fps) Sub stream: 704 × 576 (1 fps–25 fps) 704 × 480 (1 fps–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| DORI Distance | 3.6mm– 106.7m (Detect) 42.7m (Observe) 21.3m (Recognize) 10.7m (Identify) 2.8mm– 74.7m (Detect) 29.9m (Observe) 14.9m (Recognize) 7.5m (Identify) |
| Resolution | 3840 × 2160 (3840 × 2160); 3072 × 2048 (3072 × 2048); 3072 ×1728 (3072 × 1728); 2592 × 1944 (2592 × 1944); 2688 × 1520 (2688 × 1520); 3M (2048 × 1536); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Privacy Mask | 4 areas |
| ICR | Auto(ICR)/Color/B/W |
| ROI | Yes (4 areas) |
| Bit Rate | H.264: 32 Kbps–8192 Kbps ; H.265: 12 Kbps–8192 Kbps |
| Audio | Built-in Mic |
| Audio Compression | G.711A; G.711Mu; G.726; PCM |
| Cyber Security | Video encryption; configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade |
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast, ONVIF (Profile S/Profile T); CGI; InstaOn; Genetec; Milestone |
| SDK and API | Yes |
| Alarm Event | Network disconnection; IP conflict; illegal access; motion detection; video tampering; audio detection; security exception |
| Ethernet | RJ-45 (10/100Base-T) |
| User Account | 6 (Total bandwidth: 48 M) |
| Smart Phone | iPhone, iPad, Android Phone |
| IR Range | IR Range of 30 Mtr., Smart IR |
| Operating Temperature | -40° C ~ +55° C (-40° F ~ +131° F) / Less than <95% RH |
| Power Source | DC12V, PoE (802.3af) |
| Power Consumption | 2.3W (12V DC); 3.1W (PoE) |
| Weatherproof Standard | IP67 |
| Dimension | 85.6 mm × Φ94.0 mm |
| Casing | Metal |
| Weight | 0.32 kg |
