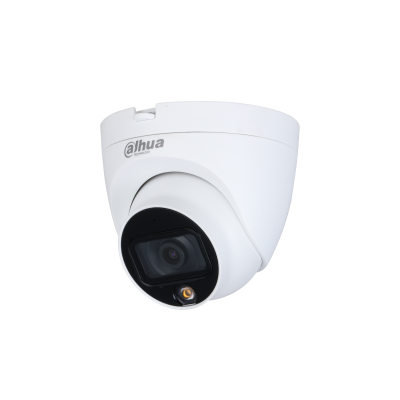

2MP Full-color Starlight HDCVI Eyeball Camera
> Full-color starlight
> 20 m illumination distance
> Max. 30fps@1080P
> CVI/CVBS/AHD/TVI switchable
> Fixed lens (2.8 mm;3.6 mm optional)
> IP67, 12V±30% DC
SKU: DH-HAC-HDW1209TLQP-LED
Categories: DAHUA, DAHUA HD CCTV CAMERA PRICE LIST
Camera | |||||
Image Sensor | 1/2.8 inch CMOS | ||||
Effective Pixels | 1920 (H) × 1080 (V), 2MP | ||||
Scanning System | Progressive | ||||
Electronic Shutter Speed | PAL: 1/25 s–1/100000 s | ||||
S/N Ratio | >65 dB | ||||
Minimum Illumination | 0.01 Lux/F1.6, 0 Lux white light on | ||||
Illumination Distance | Distance up to 20 m (65.61 ft) | ||||
Illuminator On/Off Control | Auto; manual | ||||
Illuminator Number | 1 | ||||
Pan/Tilt/Rotation Range | Pan: 0°–360° Rotation: 0°–360° | ||||
Lens | |||||
Lens Type | Fixed-focal | ||||
Mount Type | M12 | ||||
Focal Length | 2.8 mm; 3.6 mm | ||||
Max. Aperture | F1.6 | ||||
Field of View | 2.8 mm: 126.2° × 106° × 56.5° (diagonal × horizontal × vertical); (diagonal × horizontal × vertical) | ||||
Iris Type | Fixed iris | ||||
Close Focus Distance | 2.8 mm: 0.7 m (2.29 ft); | ||||
DORI Distance | Lens | Detect | Observe | Recognize | Identify |
2.8 mm | 43.9 m (144.02 ft) | 17.5 m (57.41 ft) | 8.8 m (28.87 ft) | 4.4 m (14.43 ft) | |
3.6 mm | 55.2 m (181.1 ft) | 22.1 m (72.5 ft) | 11.0 m (36.1 ft) | 5.5 m (18.0 ft) | |
Video | |||||
Frame Rate | CVI: | ||||
Resolution | 1080p (1920 × 1080); 720p (1280× 720); 960H (960 × 576/960 × 480) | ||||
BLC | BLC/DWDR | ||||
WDR | DWDR | ||||
White Balance | Auto; manual | ||||
Gain Control | Auto; manual | ||||
Noise Reduction | 2D NR | ||||
Smart Light | Yes | ||||
Mirror | Off/On | ||||
Privacy Masking | Off/On (8 area, rectangle) | ||||
Certifications | |||||
Certifications | CE (EN55032, EN55024, EN50130-4,EN60950-1) | ||||
Port | |||||
Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port | ||||
Power | |||||
Power Supply | 12V ±30% DC | ||||
Power Consumption | Max 3.1W (12V DC, white light on) | ||||
Environment | |||||
Operating Temperature | –40°C to +60°C (–40°F to 140°F); <95% (non-condensation) | ||||
Storage Temperature | –40°C to +60°C (–40°F to 140°F); <95% (non-condensation) | ||||
Protection Grade | IP67 | ||||
Structure | |||||
Casing | Inner core: metal + plastic | ||||
Camera Dimensions | φ97.1 mm × 91.4 mm (φ3.82" × 3.6") | ||||
Net Weight | 0.21 kg (0.46 lb) | ||||
Gross Weight | 0.28 kg (0.62 lb) | ||||
