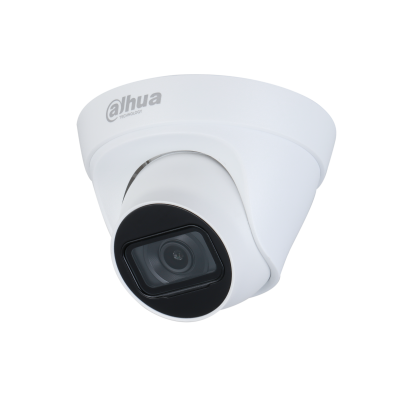

2MP Lite Full-color Fixed-focal Eyeball Netwok Camera
> 2MP, 1/2.7” CMOS image sensor, low illuminance, high image definition
> Outputs max. 2MP (1920 × 1080) @25/30 fps
> H.265 codec, high compression rate, ultra-low bit rate
> Built-in LEDs, max LED distance: 15 m
> ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
> Rotation mode, DWDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
> Abnormality detection: Motion detection, video tampering, network disconnection, IP conflict, illegal access
> 12V DC/PoE power support
> IP67 protection
SKU: IPC-HDW1239T1P-LED-S4
Categories: DAHUA, DAHUA IP CCTV CAMERA
| Camera | |||||
Image Sensor |
1/2.7" 2Megapixel progressive CMOS | ||||
Effective Pixels |
1920 (H) × 1080 (V) | ||||
ROM |
16 MB | ||||
RAM |
64 MB | ||||
Scanning System |
Progressive | ||||
Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100000 s | ||||
| Min. Illumination |
0.005 Lux @F1.6 | ||||
| LED Distance |
2.8 mm: 10 m (32.8ft)
3.6 mm: 15 m (49.2ft) | ||||
| LED On/Off Control |
Auto/Manual | ||||
| LEDs Number | 1 | ||||
| Pan/Tilt/Rotation Range |
Horizontal: 0°–355°
Vertical: 0°–78°
Rotation: 0°–360° | ||||
| Lens | |||||
Lens Type |
Fixed-focal | ||||
Mount Type |
M12 | ||||
Focal Length |
2.8 mm
3.6 mm | ||||
Max. Aperture |
2.8 mm: F1.6
3.6 mm: F1.6 | ||||
Field of View |
2.8 mm: Pan 110° × Tilt 59° × Diagonal 132°
3.6 mm: Pan 91° × Tilt 48° × Diagonal 109° | ||||
Iris Type |
Fixed | ||||
Close Focus Distance |
2.8 mm: 0.6 m (2.0 ft)
3.6 mm: 1.1 m (3.6 ft) | ||||
DORI Distance | Lens |
Detect |
Observe |
Recognize |
Identify |
2.8 mm |
37.3 m
(122.4 ft) |
14.9 m
(48.9 ft) |
7.5 m
( 24.6 ft) |
3.7 m
(12.1 ft) | |
3.6 mm |
53.3 m
(174.9 ft) |
21.3 m
(69.9 ft) |
10.7 m
(35.1 ft) |
5.3 m
(17.4 ft) | |
| Video | |||||
| Video Compression |
H.265; H.264; H.264H; H.264B; MJPEG | ||||
| Smart Codec |
Yes | ||||
| Video Frame Rate |
Main Stream:
1920 × 1080 (1 fps–25/30 fps)
Sub stream:
704 × 576 (1 fps–25 fps)
704 × 480 (1 fps–30 fps) | ||||
| Stream Capability |
2 streams | ||||
| Resolution |
1080p (1920 × 1080); 1.3m (1280 × 960);720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640× 480); CIF (352 × 288/352 × 240) | ||||
| Bit Rate Control |
CBR/VBR | ||||
| Video Bit Rate |
H.264: 32 Kbps–6144 Kbps
H.265: 12 Kbps–6400 Kbps | ||||
| Day/Night |
Color/B/W | ||||
| BLC |
Yes | ||||
| HLC |
Yes | ||||
| WDR |
DWDR | ||||
| White Balance |
Auto/natural/street lamp/outdoor/manual/regional custom | ||||
| Gain Control |
Manual/Auto | ||||
| Noise Reduction |
3D DNR | ||||
| Motion Detection |
OFF/ON (4 areas, rectangular) | ||||
| Region of Interest(RoI) |
Yes (4 areas) | ||||
| Smart Light |
Yes | ||||
| Image Rotation |
0°/90°/180°/270° (Support 90°/270° with 1080p resolution.) | ||||
| Mirror |
Yes | ||||
| Privacy Masking |
4 areas | ||||
| Network | |||||
Network |
RJ-45 (10/100 Base-T) | ||||
Protocol |
IPv4; IPV6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; NTP; DDNS ;Multicast | ||||
Interoperability |
ONVIF (Profile S); CGI; P2P; Genetec | ||||
User/Host |
20 | ||||
Edge Storage |
FTP; Dahua Cloud | ||||
Browser |
IE
Chrome
Firefox | ||||
Management Software |
Smart PSS; DSS; DMSS | ||||
Mobile Phone |
IOS; Android | ||||
| Certification | |||||
Certifications |
CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B | ||||
| Power | |||||
Power Supply |
12V DC/PoE (802.3af) | ||||
| Power Consumption |
<4.8 W | ||||
| Environment | |||||
| Operating Conditions |
-40°C to +60°C (-40°F to +140°F)/less than ≤ 95% | ||||
| Storage Temperature |
-40°C to +60°C (-40°F to +140°F) | ||||
| Ingress Protection |
IP67 | ||||
| Structure | |||||
Casing |
Metal + plastic | ||||
Dimensions |
85.5 mm × Φ109 mm (3.4" × Φ4.3") | ||||
Net Weight |
0.24 kg (0.5 lb) | ||||
Gross Weight |
0.37 kg (0.8 lb) | ||||
