The cones are moulded in one piece; we don’t use a separate glued dust-cap. The little balance ribs around the edge of the centre are bonded directly to the voice-coil behind it, making the whole motor assembly one solid piece. Using fewer moving parts gives their engineers fine control over how the speaker moves – which, in turn, means fine control over how it performs. You’ll hear it as strong, tight bass and startlingly clear vocals, guitars and more. Even at eyebrow-raising volume.
Each woofer is powered by a dual-stacked strontium carbonite Ferrite+ ceramic magnet system. Using two magnets means we can more effectively direct where the magnetic energy goes – it’s a lesson we learned developing the award-winning Special Forty anniversary series, and it’s thrilling to be able to use it in their entry-level family.
The target for all that flux is the voice-coil. They use aluminium windings in Emit 30. Aluminium is light (which minimises inertia on the cone’s back-and-forth movement), and because it’s lighter than copper wire, it means they can pack more windings on to the two-layer glass-fibre former. More windings equals more power, and greater control over fine movement. There’s a twist, though (please pardon the pun): they have coated the aluminium wire in a very thin copper coating to further increase the control the amplifier has on the voice-coil. More force with only a fractional weight gain: win-win.

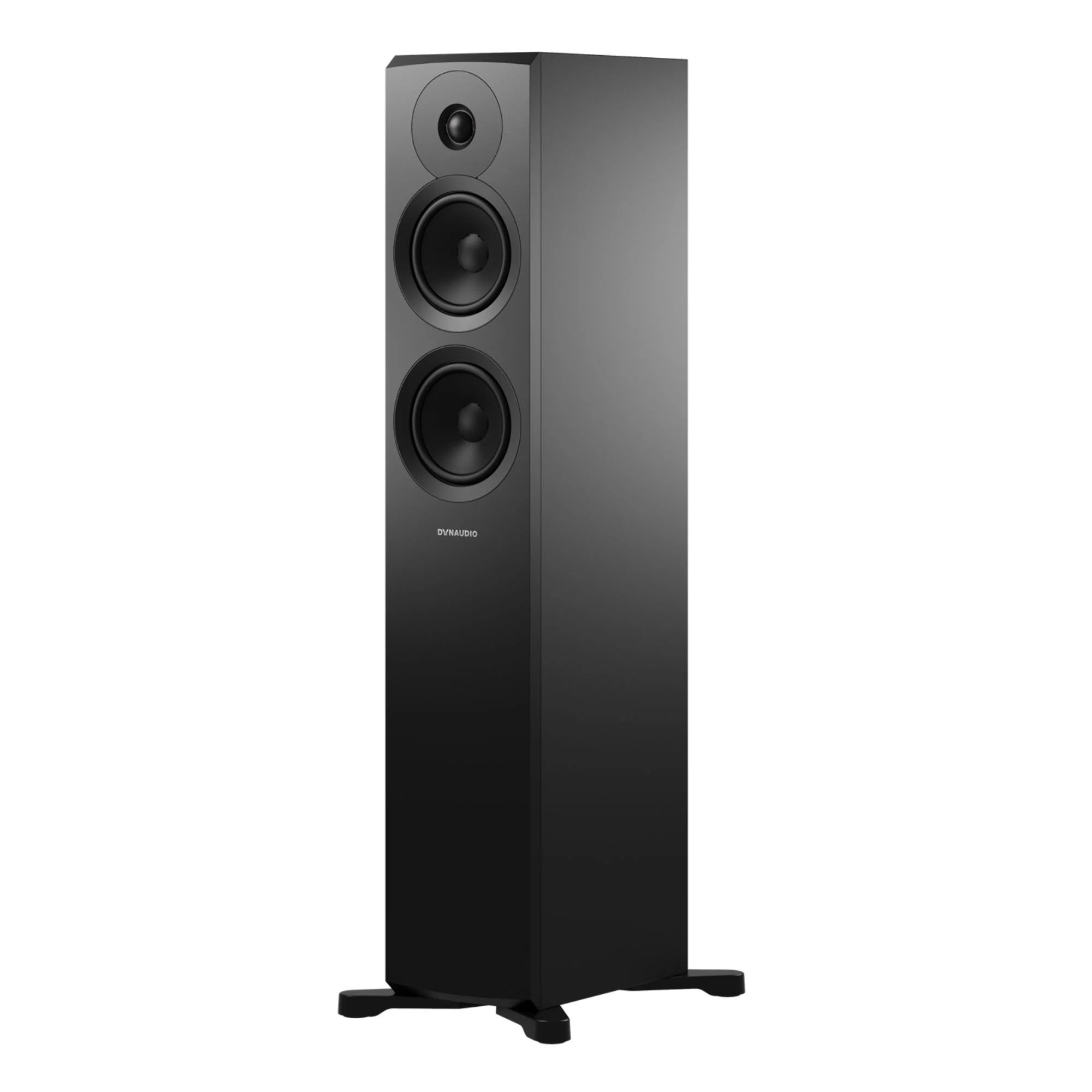

SKU: Dynaudio Emit 30 - Floor Stand
Sensitivity | 87dB (2.83V/1m) |
IEC power handling | 180 watt |
Impedance | 4 Ω |
Frequency response (± 3 dB) | 44Hz - 25kHz (-6 dB 39 Hz - 35 Khz) |
Box principle | 2 X Bass reflex rear double flared port |
Crossover | 2.5-way |
Crossover frequency | 1000/3550Hz |
Crossover topology | 1st order tweeter 2nd order midrange |
Midrange / Woofer | 14cm MSP |
Woofer | 14cm MSP |
Tweeter | Cerotar soft dome with Hexis |
Weight | 15.53 kg |
Dimensions (W x H x D) | 170 X 900 X 271,5 mm 6.7 X 35.4 X 10.7 in |
