Configuration

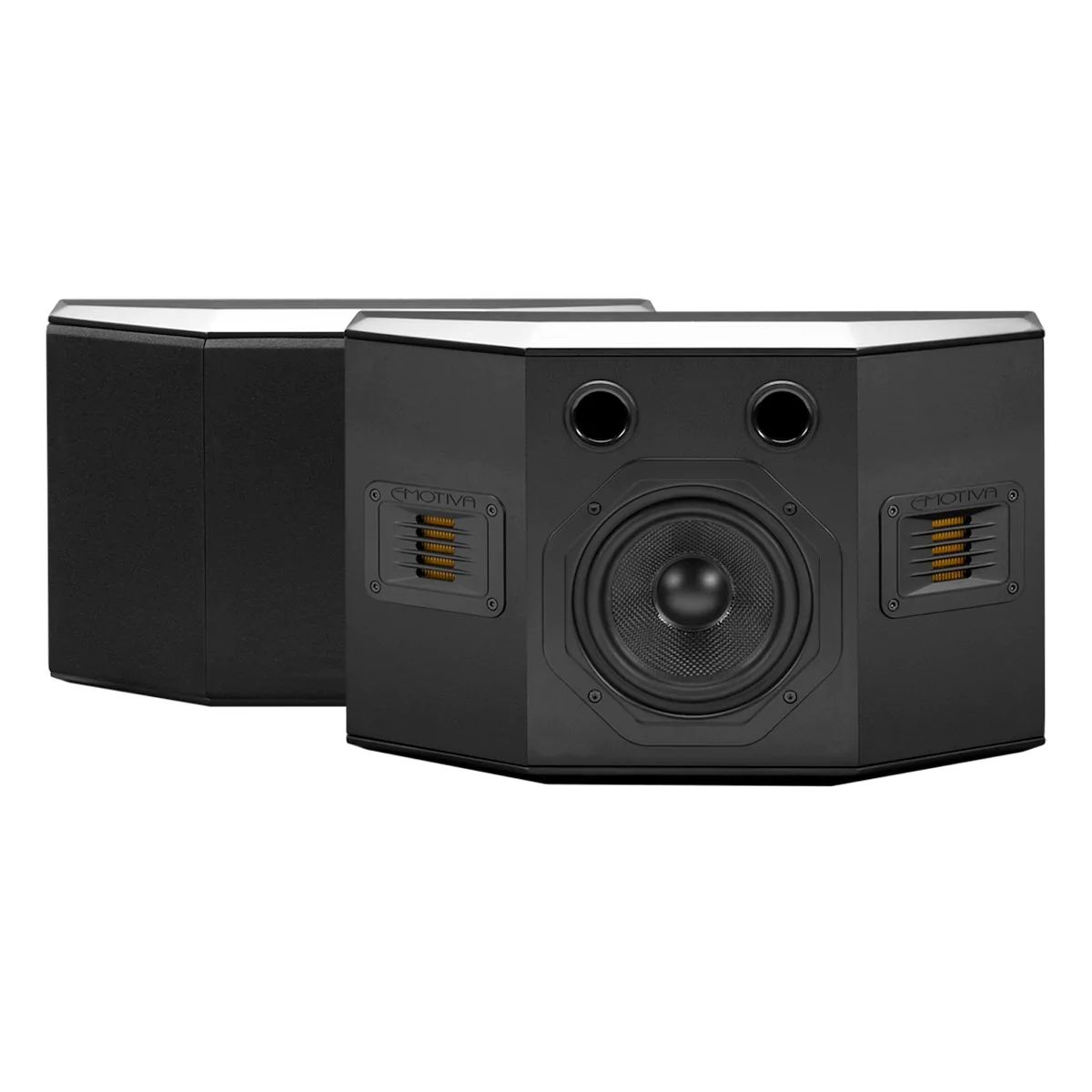

• Two-way wall mounted bipole/dipole surround sound speaker.
• Dual high-frequency drivers with switchable phase on each allow the Airmotiv E2 to be used in four different configurations: bipole, inverted bipole, and forward and rearward oriented dipoles.

Cabinet tuning

Front port

Driver Complement

• Dual high-frequency drivers: 25×32 mm Airmotiv folded ribbon tweeters.
• Low/mid-frequency driver: 5-1/4” woven fiber cone.

Efficiency

87 dB (2.83V/1m)

Power handling

70W continuous / 150W peak

Recommended amplifier power

50W – 150W / channel

Nominal impedance

8 ohms

Frequency response

65 Hz – 28 kHz (+3/-3 dB)

Crossover frequency

2700 Hz, 12 dB / octave

Terminals and Switches

• Dual speaker terminals for bi-amping or bi-wiring.
• Dual switches allow each tweeter to be individually inverted or non-inverted.

Dimensions

• 10-3/16” high x 15-1/16” wide x 5-9/16” deep.
• 19-1/4” long x 15-1/2” wide x 16-1/2” high (boxed)

Weight

• 11.2 pounds; each (unboxed)
• 29.7 pounds; pair (boxed)

Mounting

Wall mounting; heavy duty steel mounting bracket included

Grille

Black cloth over a rigid frame;  attaches securely with powerful magnets for easy removal
