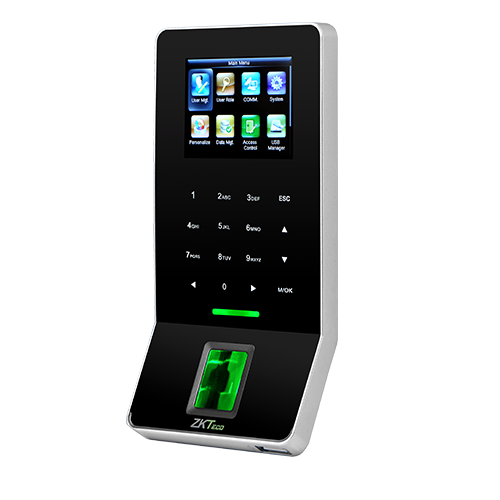

F22 is an ultra-thin fingerprint time attendance and access control terminal with BioID sensor and Wi-Fi, which offers unparalleled performance with advanced algorithm for reliability, precision and excellent matching speed. F22 features the fastest commercial-based fingerprint matching algorithm and ZK high-performance, high-image quality infrared detection fingerprint sensor.
F22 provides a superior touching experience with touch keypad, and offers flexibility for standalone installation or with any third-party access control panel that supports standard wiegand signal. TCP/IP, RS485 and Wi-Fi are also available that the device can be used in different networks.
Categories: BIOMETRICS
Display | 2.4-inch TFT LCD Color Screen |
Fingerprint Capacity | 3,000 |
Card Capacity | 5000(Optional) ID or RFID S50/S70 IC Card (13.56Mhz) 1K/4K |
Transaction Capacity | 100,000 |
Sensor | BioID Sensor/ SilkID Sensor (optional) |
Algorithm Version | ZKFinger VX10.0 |
Communication | RS232/485, TCP/IP, USB-host,Wi-Fi |
Access Control Interface | 3rd Party Electric Lock, Door Sensor, Exit Button, Alarm |
Wiegand Signal | Input, Output |
Aux. Input | 1ea for linkage function |
Functions | DST, Automatic Status Switch, Record query, T9 input, 14 digit user ID, Anti-passback, Scheduled-Bell, Printer(Optional), ADMS(Optional) |
Power Supply | 12V DC,3A |
Operating Temperature | 0 ℃- 45 0℃ |
Operating Humidity | 20%-80% |
Dimension(LxWxH) | 158.5x78.0x19.4mm |
SDK and software | Standalone SDK,ZKAccess3.5 software |
