Key Feature
H.265+/H.265/H.264+/H.264 video compression
Up to 40/60 Mbps incoming bandwidth, and 60 Mbps outgoing
bandwidth
Up to 4/8-ch network camera inputs
Up to 4-ch 1080p decoding capability
HDMI and VGA simultaneous output
Compression and Recording
H.265+ compression effectively reduces the storage space by up to 75%
Full channel recording at up to 4 MP resolution
Storage and Playback
2-ch@4 MP or 4-ch@1080p playback resolution
1 SATA interface (up to 6 TB capacity per HDD)
Smart Function
Supports line crossing and intrusion detection
Smart search for the selected area in the video; and smart playback to improve the playback efficiency
Automatically search and add network cameras after device is activated
Network & Ethernet Access
1 self-adaptive 10/100 Mbps Ethernet interface
Hik-Connect for easy network management

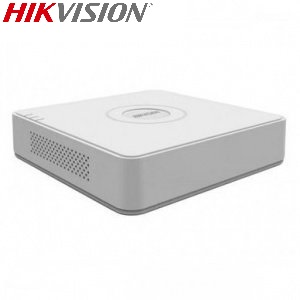

SKU: DS-7108NI-Q1
Model DS-7104NI-Q1 DS-7108NI-Q1
Video and Audio
IP video input
4-ch 8-ch
Up to 4 MP resolution
Incoming bandwidth 40 Mbps 60 Mbps
Outgoing bandwidth 60 Mbps
HDMI output 1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA output 1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Video output mode HDMI/VGA simultaneous output
Decoding
Decoding format H.265+/H.265/ H.264+/H.264
Recording resolution 4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
Synchronous playback 4-ch 8-ch
Capability 4-ch@1080p (25 fps), 2-ch@4 MP (25 fps)
Stream type Video, Video & Audio
Network
Remote connection 16
Network protocol TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnPTM
Network interface 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Auxiliary interface
SATA 1 SATA interface
Capacity Up to 6 TB capacity for each disk
Alarm in/out N/A
USB interface Rear panel: 2 × USB 2.0
General
Power supply 12 VDC, 1.5 A
Consumption (without
HDD)
≤ 10 W
Working temperature -10 °C to 55 °C (14 °F to 131 °F)
Working humidity 10% to 90%
Dimension (W × D × H) 200 × 200 × 48 mm (7.9" × 7.9" × 1.9")
Weight (without HDD) ≤ 1 kg (2.2 lb)
