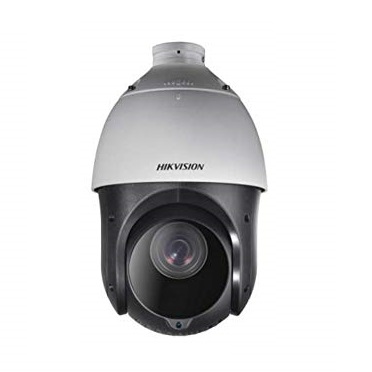

Hikvision DS-2DE4225IW-DE (S5) 2 MP 25 × IR Network Speed
Dome adopts 1/2.8" progressive scan CMOS chip. With the 25 ×
optical zoom lens, the camera offers more details over
expansive areas.
This series of cameras can be widely used for wide ranges of
high-definition, such as the rivers, roads, railways, airports,
squares, parks, scenic spots, and venues, etc.
Empowered by deep learning algorithms, Hikvision AcuSense
technology brings human and vehicle targets classification
alarms to front- and back-end devices. The system focuses on
human and vehicle targets, vastly improving alarm efficiency and
effectiveness.
Focuses on human and vehicle targets classification based
on deep learning
Support face capture. Up to 5 faces captured at the same
time
1/2.8" Progressive Scan CMOS
Up to 1920 × 1080 @30fps resolution
Excellent low-light performance with
powered-by-DarkFighter technology
25 × optical zoom, 16 × digital zoom
WDR, HLC, BLC, 3D DNR, Defog, Regional Exposure,
Regional Focus
Up to 100 m IR distance
12 VDC & POE (802.3at)
Support H.265+/H.265 video compression
SKU: DS-2DE4225IW-DE
Specification
Camera Module
Image Sensor 1/2.8” progressive scan CMOS
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON); B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed 1/1 s to 1/30000 s
Slow Shutter yes
Focus semi-auto, manual, auto
Day & Night ICR
Day/Night Switch day, night, auto, scheduled-switch
BLC yes
WDR 120 dB WDR
HLC yes
3D DNR yes
Defog yes
EIS yes
Regional Exposure yes
Regional Focus yes
Image Settings saturation, brightness, contrast, sharpness
White Balance auto, ATW, sodium lamp, fluorescent lamp, indoor, outdoor, MWB, Locked WB
Digital Zoom 16 ×
Optical Zoom 25 ×
Privacy Mask up to 24 masks, polygon region, mosaic mask, mask color configurable
SNR >52dB
Lens
Focal Length 4.8 mm to 120 mm, 25 × Optical
Zoom Speed approx. 3.6 s
FOV
Horizontal field of view: 57.6° to 2.5° (wide-tele),
Vertical field of view: 34.4° to 1.4° (wide-tele),
Diagonal field of view: 64.5° to 2.9° (wide-tele)
Aperture F1.6
PTZ
Movement Range (Pan) 360°
Movement Range (Tilt) -15° to 90°(auto flip)
Pan Speed pan speed: configurable from 0.1° to 80°/s; preset speed: 80°/s
Tilt Speed tilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s
Proportional Zoom yes
Presets 300
Patrol Scan 8 patrols, up to 32 presets for each patrol
Pattern Scan 4 pattern scans
Power-off Memory yes
Park Action preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan,
panorama scan
3D Positioning yes
PTZ Status Display yes
Preset Freezing yes
Scheduled Task preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan,
panorama scan, dome reboot, dome adjust, aux output
Video
Max. Resolution 1920 × 1080
Stream Type main stream, sub-stream, third stream
Main Stream 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288)
60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
Third Stream 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video Compression H.265, H.264, MJPEG
Video Bit Rate 32 kbps to 16384 kbps
H.264 Type baseline profile, main profile, high profile
H.265 Type main profile
H.264+ yes
H.265+ yes
SVC yes
ROI dynamic face tracking, fixed region, main stream, sub-stream and third stream
respectively support eight fixed areas
Audio
Audio Compression G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM
Audio Bit rate MP2L2: 32kbps, 40kbps, 48kbps, 56kbps, 64kbps, 80kbps, 96kbps, 112kbps, 128kbps,
144kbps, 160kbps, 192kbps
Audio Sampling Rate MP2L2: 16kHz, 32kHz, 48kHz, PCM: 8kHz, 16kHz, 32kHz, 48kHz
Environment Noise Filtering yes
Smart Features
Face Capture yes
Basic Event audio exception, motion detection, video tampering alarm, exception
Smart Event intrusion detection, line crossing detection, region entrance detection, region exiting
detection, unattended baggage detection, object removal detection
Smart Record ANR, Dual-VCA
Alarm Linkage preset, patrol scan, pattern scan, memory card video recording, alarm output, sending
email, notify surveillance center, upload to FTP
Perimeter Protection Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
Network
Network Storage NAS (NFS, SMB/ CIFS), ANR
Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP,
RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
API ISAPI, Hikvision SDK, Hik-Connect, ONVIF (Profile S, Profile G, Profile T), ISUP
Simultaneous Live View 20
User/Host 32
Smooth Streaming yes
Security Measures Authenticated username and password, MAC address binding, HTTPS encryption,
802.1X authenticated access, IP address filter
Client iVMS-4200, Hik-Connect, HikCentral
Web Browser IE 8 to 11, Chrome 57+, Firefox 52+, Safari 12+
Interface
Communication Interface RJ45, self-adaptive 10M/100M Ethernet port
On-board Storage support microSD/microSDHC/microSDXC cards, up to 256 GB
Alarm Input 1 alarm input
Alarm Output 1 alarm output
Audio Input 1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%,
Audio Output 1 audio output, line level, impedance: 600 Ω
Supplement Light
IR Distance 100 m
General
Power 12 VDC, PoE(802.3at)
Power Consumption and
Current Max. 24 W, including max. 9 W for supplement light
Operating Conditions -30°C to 65°C (-22°F to 149°F); humidity lower than 90%RH
Reset yes
Material ADC 12, PC, PC+10% GF
Dimensions Φ 164.5 mm × 290 mm (Φ 6.48" × 11.42")
Weight Approx. 2 kg (4.41 lb)
