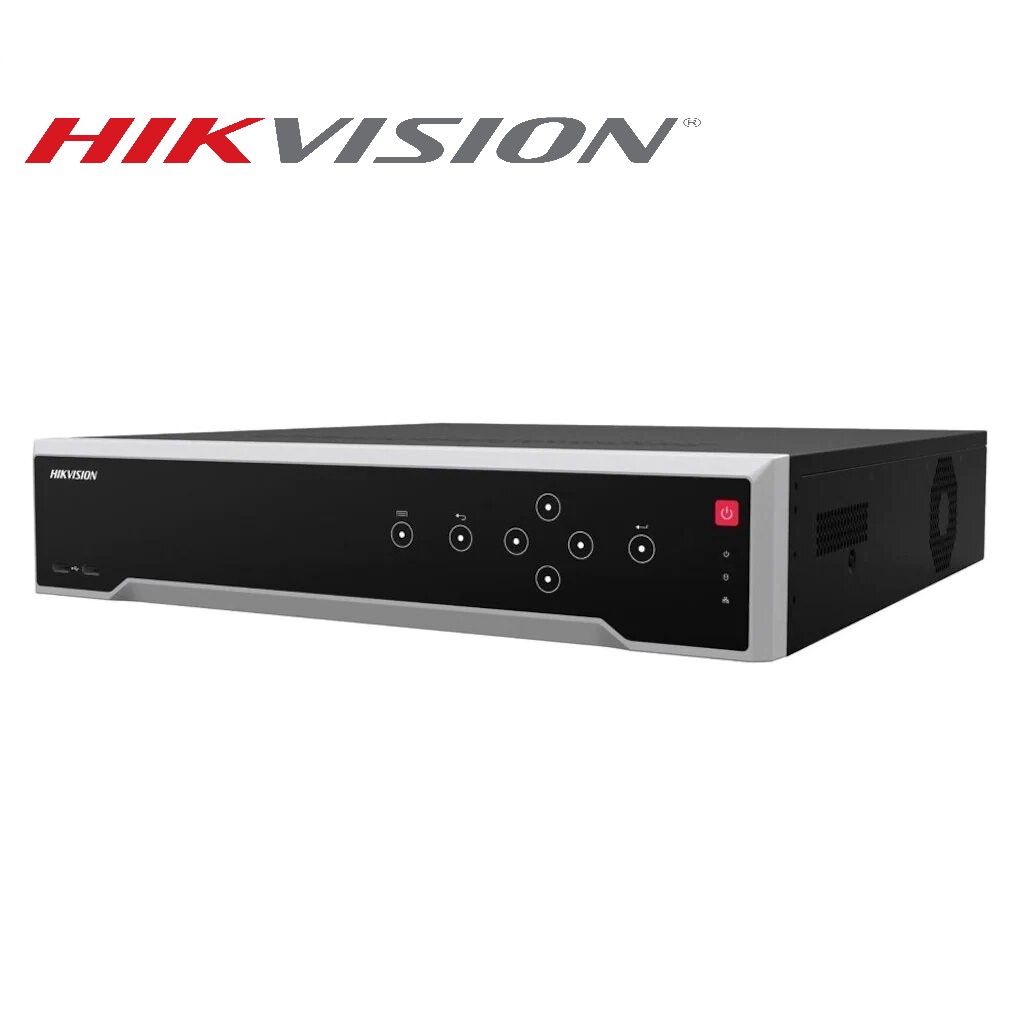

Professional and Reliable
New logical and visualized GUI design
Dual-OS design to ensure high reliability of system running
ANR technology to enhance the storage reliability when the network is disconnected
HDD hot swap with RAID0, RAID1, RAID5, RAID6 and RAID10 storage scheme configurable
Configurable normal or hot spare working mode to constitute an N+1 hot spare system
Video Input and Transmission
Up to 64-ch 12 MP IP cameras can be connected
Connectable to the third-party network cameras
Compression and Recording
H.265+ compression effectively reduces the storage space by up to 75%
Full channel recording at up to 12MP resolution
HD Video Output
HDMI1/VGA1 and HDMI2/VGA2 outputs provided
HDMI1 Video output at up to 4K (3840 × 2160) resolution
Storage and Playback
Up to 8 SATA interfaces and 1 eSATA interface for HDD connection
10TB capacity for each HDD
Smart search for efficient playback
16-ch synchronous playback at up to 1080p resolution
Normal/Important/Custom video playback
Important files management
HDD health monitoring
Smart &POS Function
Supports multiple VCA (Video Content Analytics) events
Smart search for the selected area in the video; and smart playback to improve the playback efficiency
Supports VCA search for fire/ship/temperature/temperature difference detection triggered video files
POS information overlay on live view and playback
POS triggered recording and alarm
Network & Ethernet Access
Hik-Connect for easy network management
2 Gigabit Ethernet network interfaces
Video/Audio
input
IP video input
8-ch 16-ch 32-ch 64-ch
Up to 12 MP resolution
Two-way audio 1-ch, RCA (2.0 Vp-p, 1 k Ω)
Network
Incoming bandwidth 128 Mbps
256 Mbps 320 Mbps 320 Mbps
or 200 Mbps (when RAID is enabled)
Outgoing bandwidth 256 Mbps, or 200 Mbps (when RAID is enabled)
Remote connection 128
Video/
Audio output
Recording resolution 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF
/2CIF/CIF/QCIF
CVBS output (Optional) 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
VGA1 /HDMI1 output
resolution
HDMI1: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 ×
1440)/60Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz,
1280 × 720/60Hz, 1024 × 768/60Hz
VGA1: 2K (2560 × 1440)/60Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz,
1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA2 /HDMI2 output
resolution
1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 ×
768/60Hz
Audio output 2-ch, RCA (2.0Vp-p, 1 KΩ)
Decoding
Decoding format H.265+/H.265/H.264/H.264+/MPEG4
Live view/Playback
resolution
12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF
/2CIF/CIF/QCIF
Synchronous playback 8-ch 16-ch
Capability 2-ch @ 12 MP (20fps) / 4-ch @ 8 MP (25fps) / 8-ch @ 4MP (30fps) / 16-ch
@ 1080p (30fps)
Network
management Network protocols TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI,
UPnPTM, HTTPS
Hard disk
SATA 8 SATA interfaces for 8HDDs
eSATA 1 eSATA interface
Capacity Up to 10TB capacity for each HDD
Disk array
Array type RAID0, RAID1, RAID5, RAID6, RAID10
Number of arrays 4
External
interface
Network interface 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Serial interface RS-232; RS-485; Keyboard
USB interface Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
Alarm in/out 16/4
General
Power supply 100 to 240 VAC, 50 to 60 Hz
Max. Power 200 W
Consumption
(without HDD)
≤ 30 W
Working temperature -10 to +55 oC (+14 to +131o F)
Working humidity 10% to 90%
Chassis 19-inch rack-mounted 2U chassis
Dimensions(W × D × H) 445 × 470 ×90 mm (17.5"× 18.5" × 3.5")
Weight
(without HDD)
≤ 8 kg (17.6 lb)
