A compact design facilitates projector installation – but if lens shift is insufficient it may require keystone adjustment, which can degrade picture quality. There are no such worries with the LX-UH1, however, as it features a wide lens shift: ±60% vertically and ±23% horizontally.
The LX-UH1 features a 1.6-times zoom lens. For a typical 100-inch picture size, the projector would be installed between 3 and 4.8 m / 9.8' and 15.7' from the screen – an added convenience when space is at a premium. Refer to Projection Distance Chart on the back of the brochure for more.

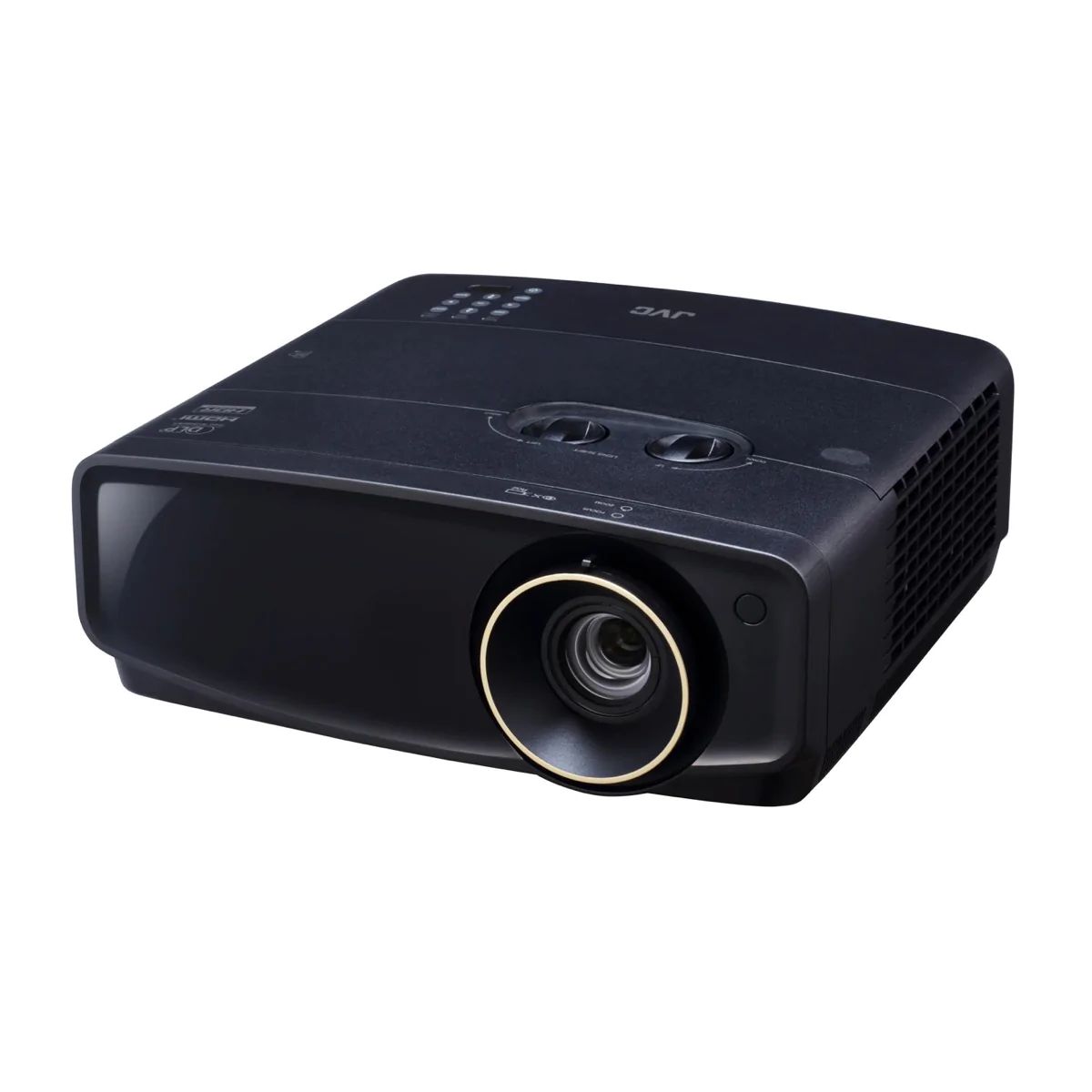

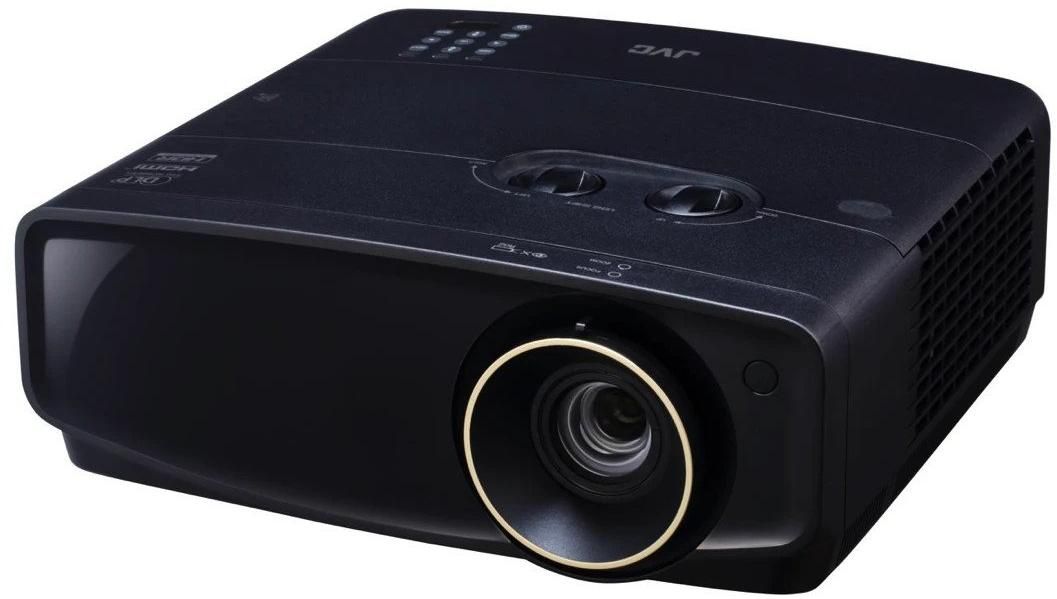

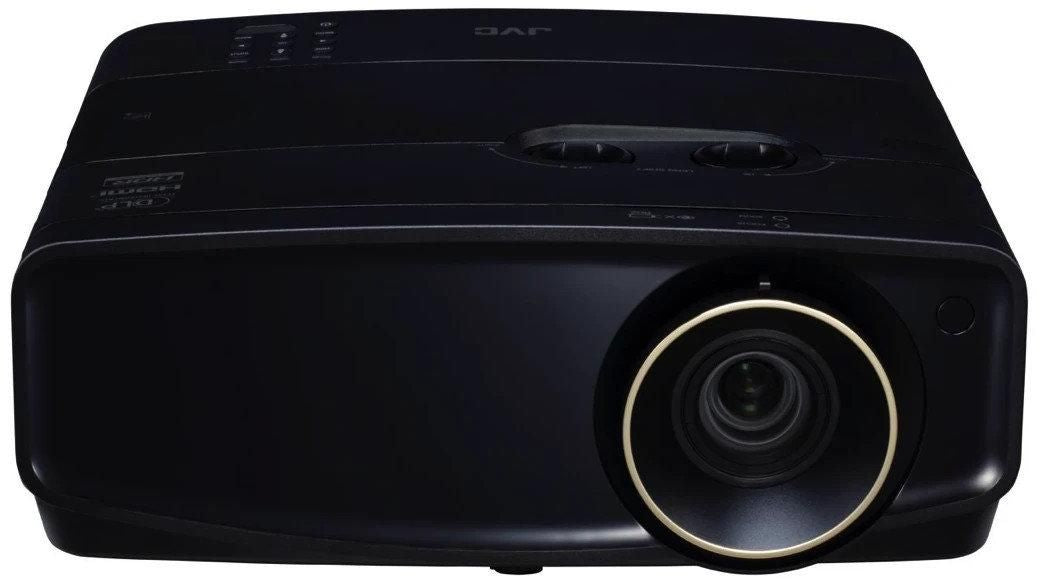

SKU: JVC LX-UH1B - 4K HDR DLP Proje
Categories: HOME THEATRE, PROJECTORS
Device | 0.47" DMD (1920 x 1080) |
Resolution | 3840 x 2160 |
Lens | 1.6x manual zoom/focus lens; f=14.3 – 22.9 mm, F 1.809 |

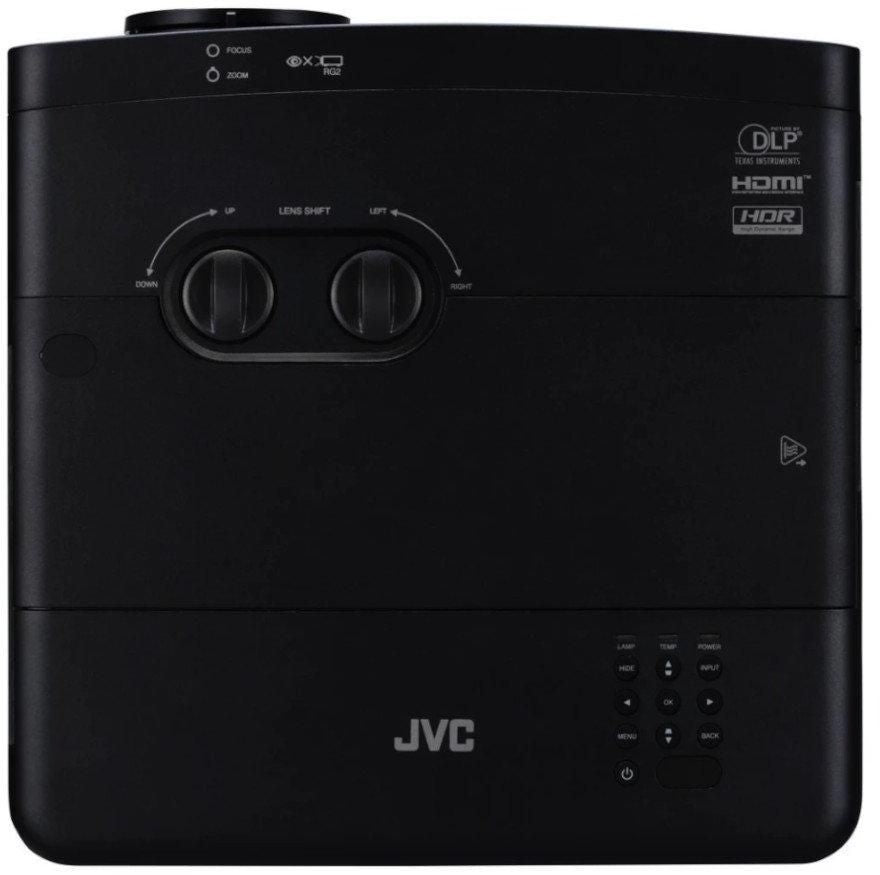

Lens shift | Manual; Vertical ±60%, Horizontal ±23% |
Projection display size | 60 – 200 inch |
Light source lamp | NSH 240W; Lamp life: Approx. 4,000 hours (Normal mode), Approx. 10,000 hours (Eco mode) |
Brightness | 2,000 lm |
Contrast ratio | Dynamic: 100,000:1 |

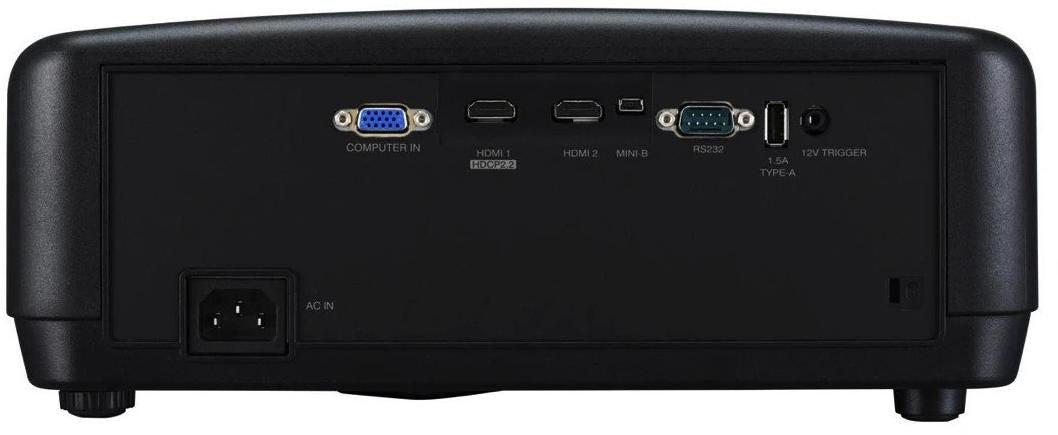

Input terminals |
|
Output terminals |
|
Control terminals |
|
Power consumption | 370 W (Standby: 0.5 W) |
Fan noise | 29 dB/33 dB (Eco/Normal) |
Power requirement | AC 100 – 240 V, 50/60 Hz |
Dimensions (W x H x D) | 333 x 135 x 331.5 mm/13-1/8" x 5-5/16" x 13-1/16" |
Weight | 4.8 kg/10.56 lbs. |
