Convenient push-style speaker terminals and curved inserts help guide speaker wire effortlessly into place. The rubber end caps on the terminal are also removable for the use of banana plugs instead of bare wire. The EM-ESL is supplied with sturdy, 3/8-16 ETC™ spikes, which can be used to fine tune vertical wave launch, enhance stability on thick carpets, and create tighter coupling between speaker and floor to provide a tighter and detailed bass performance. Each spike is conveniently covered by removable rubber end caps if you prefer not to use spikes.

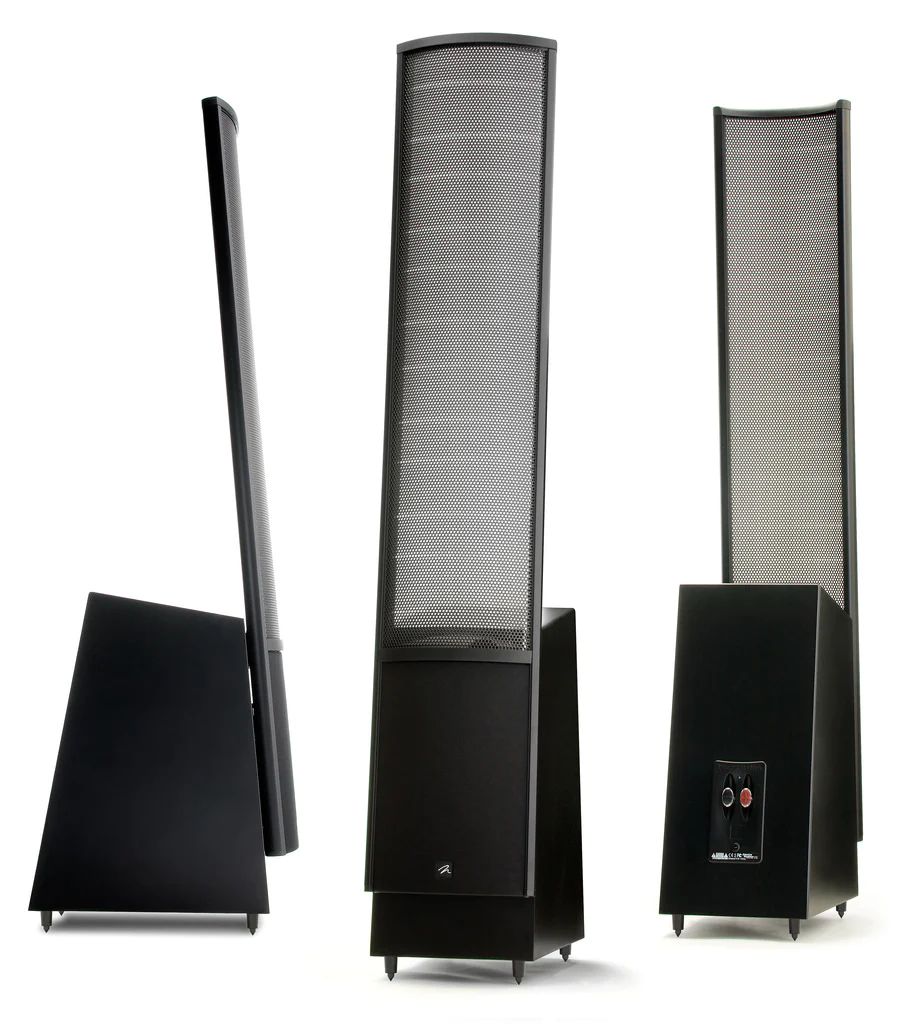

SKU: Martin Logan Electromotion ESL
Categories: HOME THEATRE, SPEAKERS, Floor Standing Speakers
Frequency Response | 42–22,000 Hz ±3dB |
Recommended Amplifier Power | 20—300 watts per channel |
Horizontal Dispersion | 30° |
Vertical Dispersion | 34" (71cm) line source |
Sensitivity | 91 dB/2.83 volts/meter |
Impedance | 6 Ohms, 1.6 @ 20kHz Compatible with 4, 6, or 8 Ohm rated amplifiers. |
Crossover Frequency | 500Hz |
High Frequency Transducer | XStat™ CLS™ electrostaic transducer » Panel Dimensions: 34" x 8.6" (86 x 22cm) » Radiating Area: 292 in² (1,892 cm² ) |
Low Frequency Transducer | 8" (20.3cm) high excursion, high-rigidity paper cone with extended throw drive assembly, non-resonance asymmetrical chamber format; bass reflex |
Components | Custom-wound audio transformer, air core coils, large steel laminate inductors, polyester capacitors, and low DF electrolytic capacitors |
Inputs | Push style with banana jacks |
Weight | 35.5 lbs. (16.1 kg) |
Dimensions | 52.1" x 9" x 16.3 " (132.3cm x 22.9cm x 41.4cm) |
