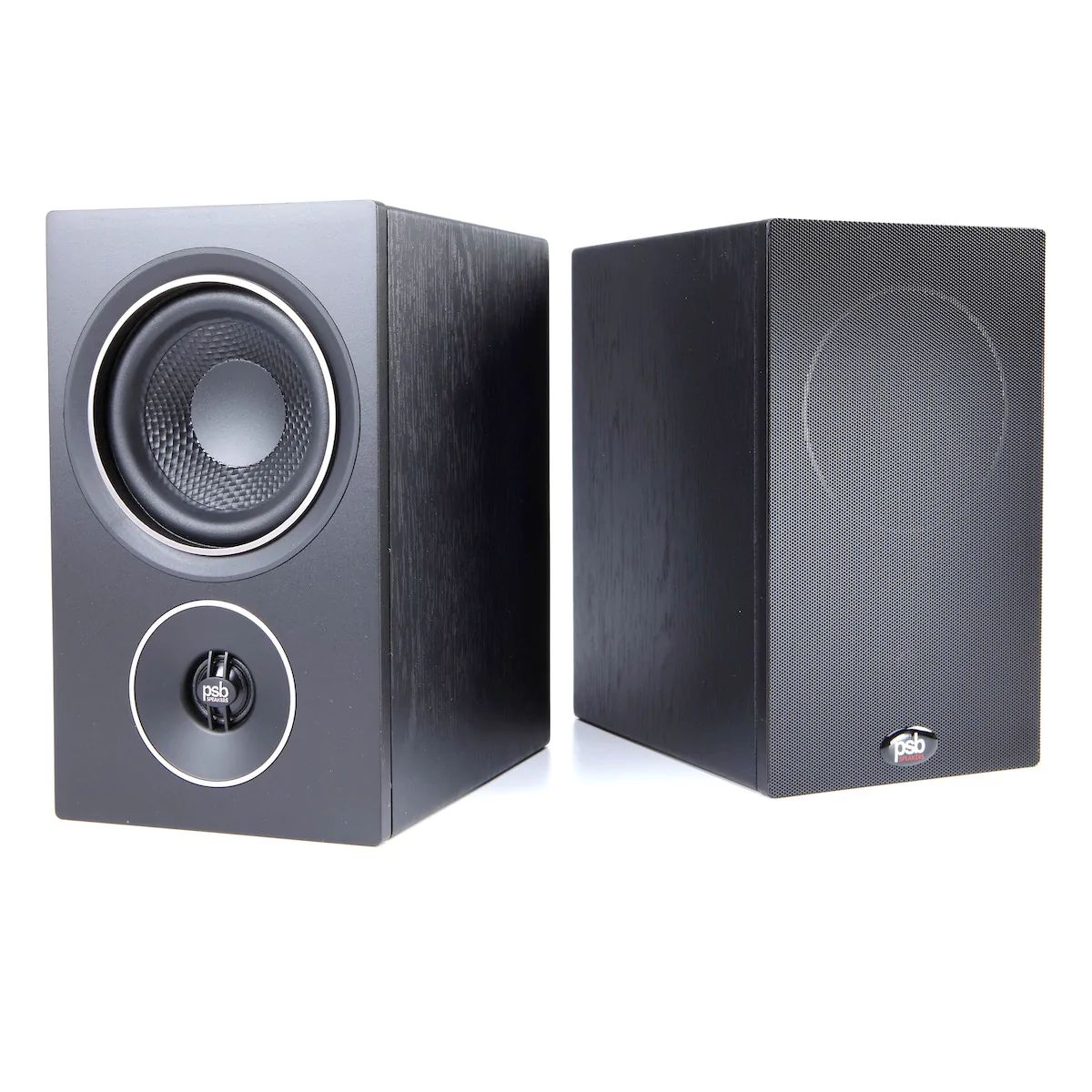

Unique modular cabinet design. The P3 has a unique combination of wall thickness and bracing to control resonances and provide a perfect platform for the driver components. The P3 cabinet’s internal damping material was first used in PSB’s most high-end models, and has now been adopted by the Alphas and positioned precisely for optimum effectiveness. A premium woodgrain vinyl finish and chrome front baffle highlights combine with magnetically attached grilles to provide a rich and timeless design.
SKU: PSB Speakers Alpha P3 - Booksh
Categories: HOME THEATRE, SPEAKERS, Bookshelf Speakers
On Axis @ 0° ±3dB | 57-21,000Hz |
On Axis @ 0° ±1 1/2dB | 67-20,000Hz |
Off Axis @ 30° ±1 1/2dB | 67-10,000Hz |
LF Cutoff -10dB | 43Hz |
Anechoic Chamber | 85dB |
Listening Room | 87dB |
Nominal | 8 Ohms |
Minimum | 4 Ohms |
Recommended | 10 – 80 Watts |
Program | 60 Watts |
Tweeter (Nominal) | 3/4” (19mm) Black Anodized Aluminium Dome with Ferrofluid and Neodymium Magnet |
Woofer (Nominal) | 4” (102mm) Textured Polypropylene Cone with Rubber Surround |
Crossover | 3,000Hz, L4 |
Internal Volume | 0.11 cu ft (3.1L) |
Design Type | Tuned Port Bass Reflex, 1 3/8” (35mm) Rear Port |
Size (W x H x D) | 5 1/8” x 8 5/8” x 6 7/8”* (130 x 220 x 174mm) |
Weight | 4.9lb (2.2kg)/each 11.45lb (5.2kg)/pr |
