At 500 watts the NextGen3 amplifier is borrowed from our former flagship model and produces huge reservoirs of power and current. The 20%+ increase in power (previous version was 400 watts) is needed to deliver the high output levels needed for modern theatre, as well as to produce the extremely deep bass in a high end 2-channel system. This increase in power is necessitated by our development on the musical front of an all-new circuit termed PerfectFilter™ that balance both frequency extremes.
PerfectFilter performs two seemingly disparate qualities; extending the strong, even response of the extreme low end of bass frequencies while simultaneously opening up air and delicacy in the middle and high frequencies of one’s system. Additionally, we applied customized PureTheatre™ filters to allow S/510 to keep up with modern theatre effects without breaking a sweat.

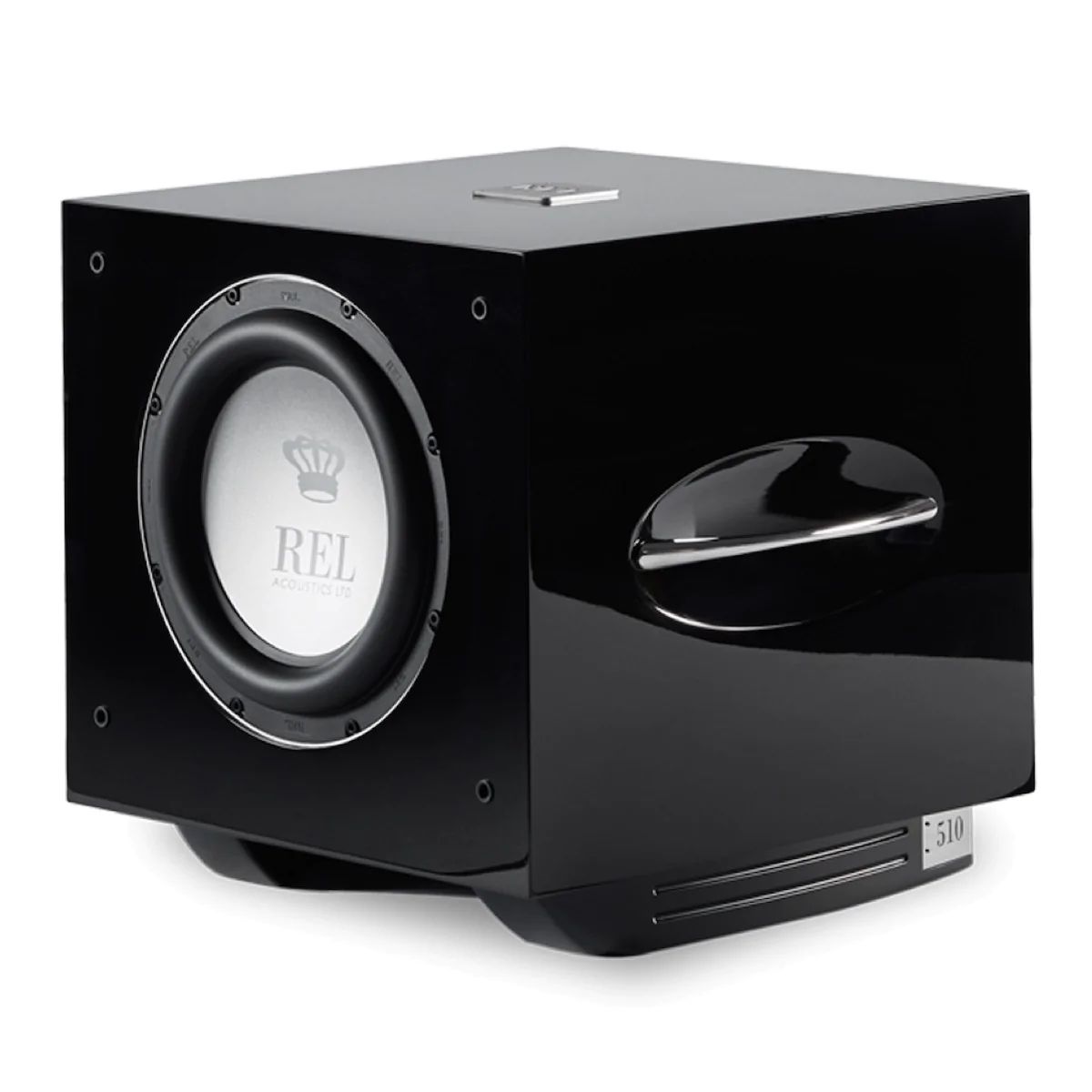

SKU: REL Acoustics S/510 - Active S
Categories: HOME THEATRE, SPEAKERS, Subwoofers
Type | Front-firing active woofer, down-firing passive radiator |
Active Driver Size & Material | 10” 250mm long-throw, die cast aluminium chassis |
Passiver Radiator Size & Material | 12 in., 300mm |
Low Frequency Extention | 20Hz at -6 dB |
Input Connectors | High Level Neutrik Speakon, Low Level stereo RCA, LFE RCA, LFE XLR |
Output Connectors | Hi Level Neutrik Speakon, LFE RCA, LFE XLR |
Power Output | 500 Watts (RMS) |
Amplifier Type | NextGen3 Class D |
Wireless Capability | Yes- REL AirShip system [required] . Sold separately. |
Fully Electronic Set Safe | Yes |
D.C Fault | Yes |
Output Short | Yes |
Mains Input Voltage | 220-240 volts, 110-120 volts for certain markets |
Fuses | 5 Amp semi delay 220 volts operation 9 Amp semi delay 120 volts operation |
Dimensions (W X H X D) | 15.7 x 16 x 18.25 in., (400 x 410 x 464 mm) Add 1.75in (44.5mm) in depth when using Hi Level connector |
Weight | 31.7Kg |
Mains Lead | Yes |
Neutrik Speakon | Yes |
Interconnect | Yes |
Users Manual | Yes |
