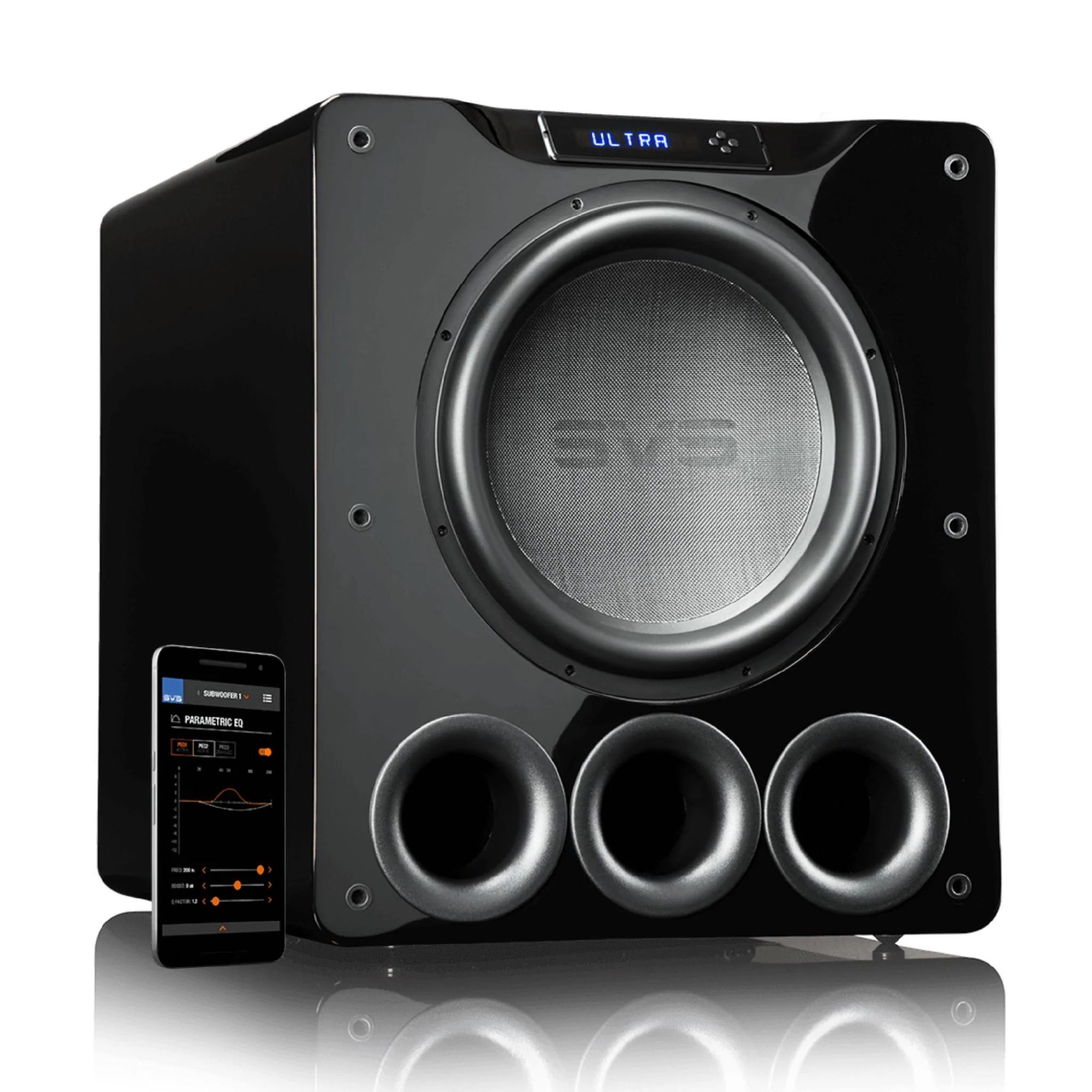

Subwoofer Specs

• Black Oak and Piano Gloss Black finish options
• Protective non-resonant steel mesh grille
• Front-firing 16" driver
• Rear-mounted amplifier
• Triple front-firing flared high-flow ports
• Screw-in rubber feet
• Robust Medium Density Fiberboard(MDF) cabinet construction
• Cabinet Dimensions: 25" (H) x 21.7" (W) x 28.3" (D) (without grille)
• Cabinet Dimensions (with grille): 25” (H) X 21.7” (W) X 30.9” (D)
• Shipped Dimensions: 34.2" H X 27.5" W X 38.6" D
• Weight (unboxed): 174.5 lbs
• Shipped Weight: 207.3 lbs

Driver Specs

• SVS 16” Ultra-series driver
• Powder-coated cast aluminum basket
• Four high-grade ferrite magnets
• Finite Element Analysis (FEA)-optimized motor structure
• Dual shorting rings reduce gap induction and lower distortion
• Extended pole piece improves heat sink and thermal management properties
• 8” diameter, high-power edge wound voice coil
• 95mm peak to peak Xmech excursion (82mm Xmax)
• Upgraded Nomex spider for improved linearity and driver control at extreme drive levels
• Dual 24-strand copper and Nomex composite high-temperature leads provide a pristine electrical connection from the amplifier to the voice coil
• Premium glass fiber laminated dustcap and reinforced composite cone sub-structure ensure a light, ridged, and neutral radiating surface
• Low-creep rubber long-throw surround for excellent durability and longevity

Amplifier Specs

• Sledge STA-1500D DSP amplifier
• 1,500 watts RMS continuous (5,000+ watts peak dynamic)
• Efficient and cool-running Class D topology
• High resolution 50Mhz Analog Devices Audio DSP with double precision 56bit filtering is most advanced subwoofer processor available for perfect audio reproduction
• Active PFC (Power Factor Correction) ensures the cleanest 1500W output regardless of your home mains supply
• XLR and RCA stereo input/output with ultra-wide input voltage for consumer and professional audio applications
• Convenient front-mounted display with subwoofer controls and 8 digit LED display
• Groundbreaking Subwoofer Control and Bass Management Smartphone App for Apple and Android Devices
• IR Remote Control
• Three user adjustable parametric EQs
• Continuously variable volume/gain control
• Continuously variable (0-180 degrees) phase control
• Continuously variable (30-200 Hz) 6, 12, 18, or 24 dB/octave low pass filter frequency with disable/LFE setting
• Main power rocker switch
• Auto-On / On / Trigger Controls
• 3-12V trigger with 1/8” (3.5 mm) TRS mini-jack input
• Green standby mode with > 0.5 watts consumption
• Input impedance 22kohm (RCA)/ 22kohm (XLR).
• RoHS compliant, lead-free construction and world-wide safety certifications
• Detachable power cord
