Speaker Specs

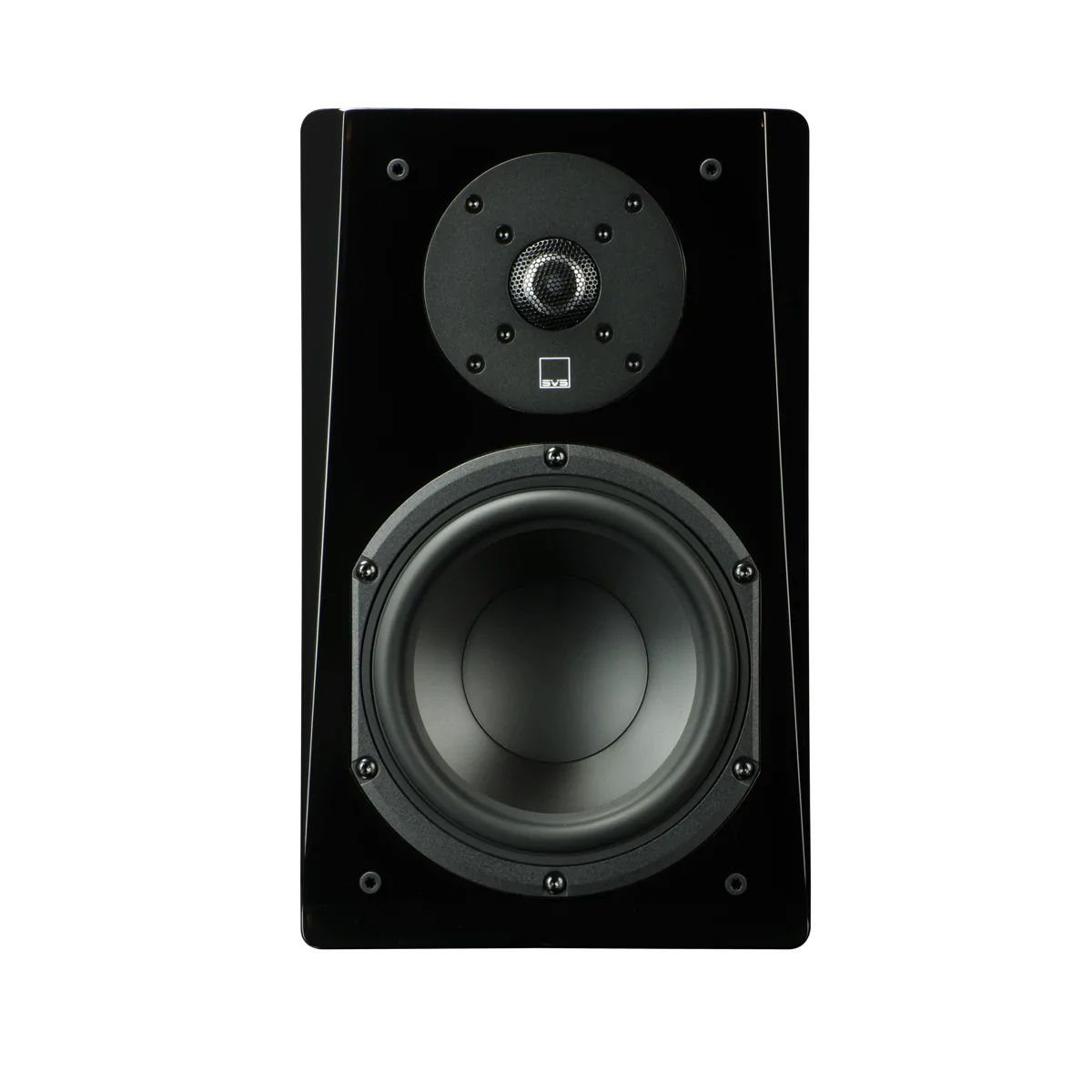

• Bookshelf Loudspeaker
• Black ash and piano gloss black finish options
• Single set of 5-way binding posts
• 1.7” wide-flared rear-firing port
• Cloth grille with pin/cup retention system
• Elastomer stick-on bumper feet (adds 3mm to height)
• Cabinet Dimensions: 13.2" (H) X 8" (W) X 9.7" (D)
• Overall Dimensions: 13.3" (H) X 8" (W) X 10.3" (D) (includes grille and bumper feet)
• Shipped Dimensions-2 Pack: 17.6" (H) X 22.4" (W) X 14.4” (D)
• Weight: 15.5 pounds
• Shipped Weight-2 Pack: 34.7 pounds

Driver Specs


1” Aluminum Dome Tweeter:

• FEA-optimized diffuser for airy and unveiled presentation
• Aluminum dome for exceptional transient response

6.5” Woofers:

• Long stroke motor and suspension for high output
• Polypropylene cone for excellent stiffness/mass ratio and pistonic behavior
• Aluminum shorting ring to reduce gap inductance, lower distortion, and enhance high frequency response
• Cast ABS-fiberglass composite basket ensures precision component alignment and excellent thermal transfer
• Vented voice coil former minimizes air compression artifacts

Crossover & Cabinet Specs

Crossover:

• 2-way crossover with premium-grade capacitors, air-core inductors and heavy-trace printed circuit boards
• Crossover network delivers outstanding phase coherency and time domain behavior
• Tweeter-to-woofer crossover: 2.3 kHz (12 dB/octave slopes)

Cabinet:

• Acoustically transparent and FEA optimized grilles minimize diffraction
• FEA-optimized cabinet and bracing eliminates resonances
• Chamfered front baffle and flush-mounted drivers reduce edge diffraction and improved on-axis high frequency response
