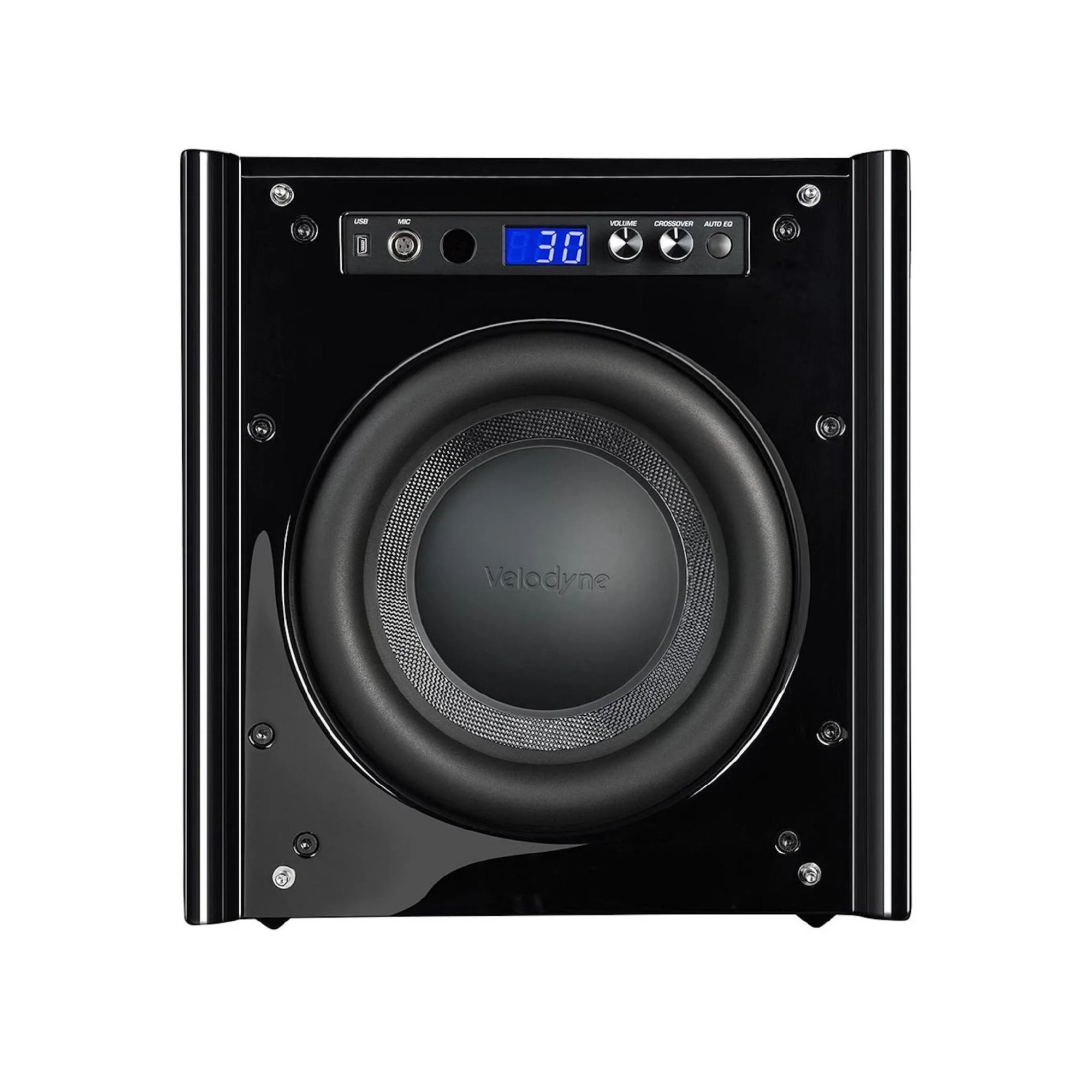

The Digital Drive Plus series redefines the term subwoofer. Digitally controlled drivers with impressive performance, almost endless power and the latest calibration algorithms with extensive adjustment options make these subwoofers precision tools of a special class.
State-of-the-art technologies coupled with decades of experience in building subwoofers
make the Digital Drive Plus Series the essence of everything the Velodyne Acoustics brand is all about. Digitally controlled high-end drivers, extensive customization options and infinite power lead to incorruptible precision down to the lowest frequency basement
SKU: Velodyne Acoustics Digital Dri
Categories: HOME THEATRE, SPEAKERS, Subwoofers
Driver | 10″ forward firing |
Amplifier Class D |
|
Frequency Response: Overall | 10.5 – 300 Hz |
Frequency Response: (± 3 dB) | 18.7 – 120 Hz |
THD | < 0.5 % (typical) |
High Pass Crossover | 80 or 100 Hz at 6 dB/octave |
Low Pass Crossover |
|
Phase | 0 to 180 degrees (variable in 15 degree increments) |
Polarity | Adjustable (+/-) |
Magnet Structure | 35 lbs. |
Voice Coil | Six-layer, 65 mm |
Cone | Fiberglass Rohacell Laminate |
Input LFE (Mono) | Line level (RCA), Nominal Impedance 47K, Balanced (XLR), Nominal Impedance 10K |
Input L&R | Line level (RCA & XLR) |
Input Microphone | Balanced (Mini-XLR, cable included) |
Input Speaker Level (L&R) | Bare wire, banana plugs, or spade lugs |
Output Thru (L&R) | Line level (RCA & XLR) |
Output (L&R), High-Pass (L&R) | Line level (RCA & XLR) |
Included Accessories | Full feature remote control, DD+ accessory kit and video cable |
Finishes | Black gloss ebony or Piano Black |
Dimensions (H/W/D) (includes feet and connectors) | 14.2” x 13” x 16.6” (36 x 33 x 42 cm) |
Shipping Weight (approx) | 34 kg |
