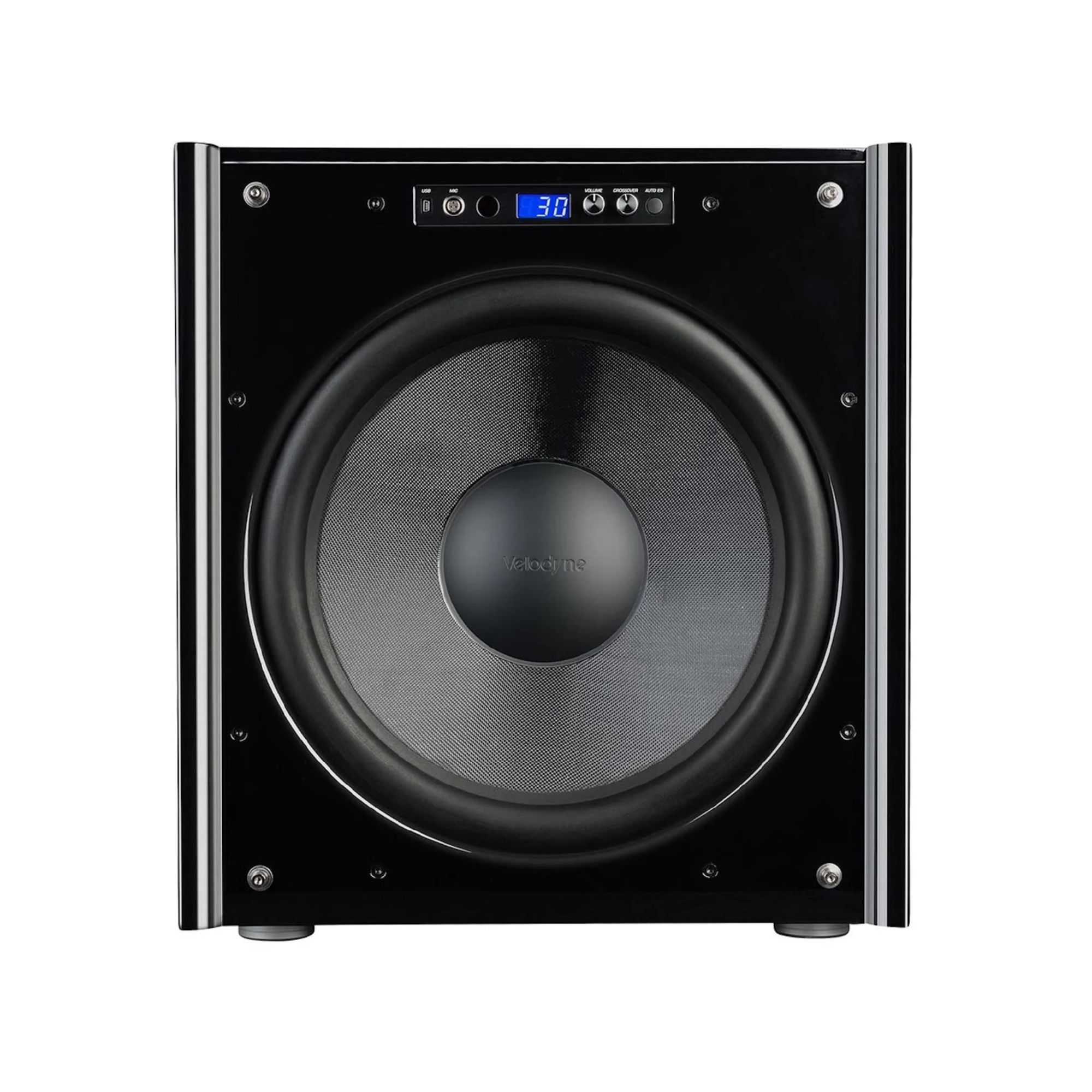

With models ranging from 10 to 18 inches, Digital Drive Plus subwoofers are available for listening rooms of all sizes.
They all have one thing in common: maximum precision in all situations.
SKU: Velodyne Acoustics Digital Dri
Categories: HOME THEATRE, SPEAKERS, Subwoofers
Driver | 18″ forward firing |
Amplifier Class D |
|
Frequency Response: Overall | 8.8 – 300 Hz |
Frequency Response: (± 3 dB) | 14.4 – 120 Hz |
THD | < 0.5 % (typical) |
High Pass Crossover | 80 or 100 Hz at 6 dB/octave |
Low Pass Crossover |
|
Phase | 0 to 180 degrees (variable in 15 degree increments) |
Polarity | Adjustable (+/-) |
Magnet Structure | 39.7 lbs. |
Voice Coil | Six-layer, 75 mm |
Cone | Fiberglass Rohacell Laminate |
Input LFE (Mono) | Line level (RCA), Nominal Impedance 47K, Balanced (XLR), Nominal Impedance 10K |
Input L&R | Line level (RCA & XLR) |
Input Microphone | Balanced (Mini-XLR, cable included) |
Input Speaker Level (L&R) | Bare wire, banana plugs, or spade lugs |
Output Thru (L&R) | Line level (RCA & XLR) |
Output (L&R), High-Pass (L&R) | Line level (RCA & XLR) |
Included Accessories | Full feature remote control, DD+ accessory kit and video cable |
Finishes | Black gloss ebony or Piano Black |
Dimensions (H/W/D) (includes feet and connectors) | 22.7” x 20.7” x 25.6” (58 x 53 x 65 cm) |
Shipping Weight (approx) | 64.4 kg |
