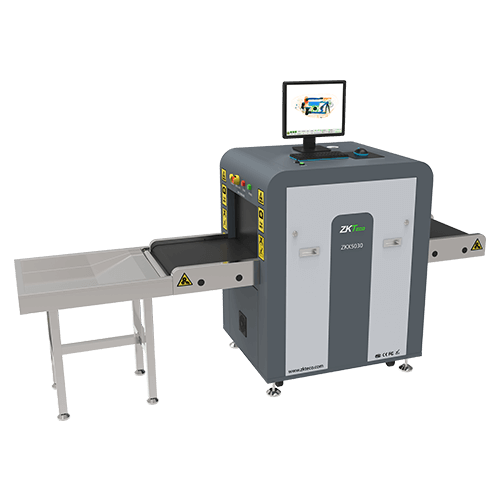

Pseudo-color scanning image Widely usable for small parcels Excellent, ergonomic industrial design Highlights Standard Optional Energy Saving Mode Offer higher Wire Resolution with HAMAMATSU® X-ray detector Bidirection scan Fingerprint Console Board Console Desk
SKU: BAGGAGE SCANNER 5030A
Categories: Metal Detector, X- RAY BAGGAGE SCANNER
Tunnel Size |
W507mm*H305mm |
Speed |
0.20m/s |
Hight of Transmission Belt |
1000mm |
Maximum Load |
≤120Kg(Adequate distribution) |
Wire Resolution |
34 AWG(0.16mm metal wire) |
Space Defintion |
HorizontalΦ1.0mm/VerticalΦ2.0mm |
Penetrate Definition |
32 AWG |
Penetration |
8mm Steel board |
Monitor |
17.5 inch LED |
System Function |
High density alarm, TIP, Luggage counter, System running timer, X- ray emitting timer, System maintainance, Training, 64 times continuous zoom in |
Film Safety |
ASA/ISO1600 standard of film safety |
Tube Voltage |
80kV |
Cooling |
Seal oil cooling/100% |
Single Inspection Dosage Rate |
≤1.0μGy |
Radiation Leak Dosage |
0.1μGy/h(5cm from the shell) |
Package Size |
L1900mm*W990m*H1320mm |
Package Weight |
410KG |
Power Consumption |
1kVA |
Noise |
53.8dB(A) |
