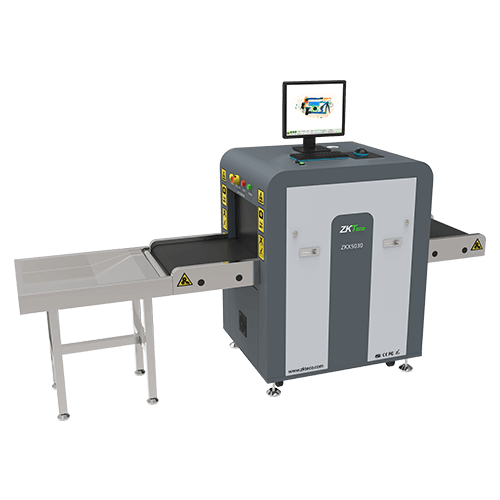

5030C X-ray inspection system increases the operator’s ability to identify potential threats; the device is designed to scan briefcases, carry-on baggage, small cargo parcels.
5030C uses reliable high quality dual energy X-ray generator. With the superb image algorithm, 5030C could offer clear scanning image, which allows operators to identify potential threat items visually.
5030C has innovative biometric identify function for operators, improving the security of system and preventing operator from forgetting password.
With ergonomic modern design, 5030C could help operators to identify suspicious items fast and accurately.
SKU: 5030C
Categories: Metal Detector, X- RAY BAGGAGE SCANNER
Tunnel Size | W507mm*H305mm |
Speed | 0.20m/s |
Hight of Transmission Belt | 1000mm |
Maximum Load | ≤120Kg(Adequate distribution) |
Wire Resolution | 38 AWG(0.1mm metal wire) |
Space Defintion | HorizontalΦ1.0mm/VerticalΦ2.0mm |
Penetrate Definition | 32 AWG |
Penetration | 32mm Steel board |
Monitor | 17.5 inch LED |
System Function | High density alarm, TIP, Luggage counter, System running timer, X-ray emitting timer, System maintainance, Training, 64 times continuous zoom in |
Film Safety | ASA/ISO1600 standard of film safety |
Tube Voltage | 140kV |
Cooling | Seal oil cooling/100% |
Single Inspection Dosage Rate | ≤1.0μGy |
Radiation Leak Dosage | 0.1μGy/h(5cm from the shell) |
Package Size | L1990mm*W990m*H1320mm |
Package Weight | 450KG |
Power Consumption | 1kVA |
Noise | 53.8dB(A) |
