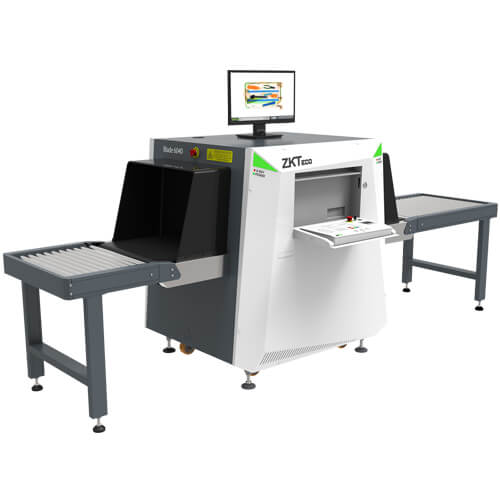

SKU: BAGGAGE SCANNER 6040
Categories: Metal Detector, X- RAY BAGGAGE SCANNER
Technical Characteristics | |
Tunnel Dimensions(W*H) |
610*420 mm |
 Conveyor Speed |
0.20 m/sec. ~0.40 m/sec |
Load on Conveyer |
max. 200kg(evenly distributed) |
Space Definition |
HorizontalΦ1.0mm VerticalΦ2.0mm |
 Steel Penetration |
38mm guaranteed;40mm typical |
 Wire Resolution |
38AWG guaranteed;40AWG typical |
Dual-energy Detector |
Yes |
Number of Colors in X-ray Image |
3 |
Dimensions(L*W*H) |
1986mm*1040mm*1315 mm |
Package Dimensions(L*W*H) |
2100*1200*1600 mm |
Package Weight |
750kg |
Film Safety |
ASA/ISO1600 standard of film safety |
Single Inspection Dosage Rate |
≤1.0μGy |
Operating Environment | |
Operating Temperature |
-10°C to +45°C |
Storage Temperature |
-20°C to +60°C |
Humidity |
5-95%, non condensing |
Power Supply | 230 VAC +/- 10% / 60/50 Hz (EU) 110 VAC +/- 10% / 60/50 Hz (US)
|
Power Consumption |
700W |
Sound Pressure |
<51.8dB (A) |
X-ray Generator | |
 Tube Current |
0.5-0.1 mA(adjustable) |
 Anode Voltage |
150-170 kV(adjustable) |
Generator Cool |
Seal oil cooling / 100% |
Computer Specification | |
Processor |
I7-7700 |
Monitor |
21” LED color |
Memory |
8 GB DDR4 |
Hard Drive |
240GB SSD+1TB HDD |
Graphic Card: |
NVIDIA GeForce GTX 1660 Ti |
USB Port |
4 Ports |
Software features |
Perfect View (PV) |
Black / White (B/W) | |
Pseudo Colors (PS) | |
Inverse View (IN) | |
High Penetration (HP) | |
Real Time Image Processing | |
Image Zoom(64x) | |
Image of Previous Baggage | |
Programmable Function Keys | |
Baggage Counter | |
Date / Time Indicator | |
Threat Image Projection (TIP) | |
 Automatic Identification of Suspicious | |
 Cloud Remote Control | |
 Monitor the status of walk through | |
metal detector |
