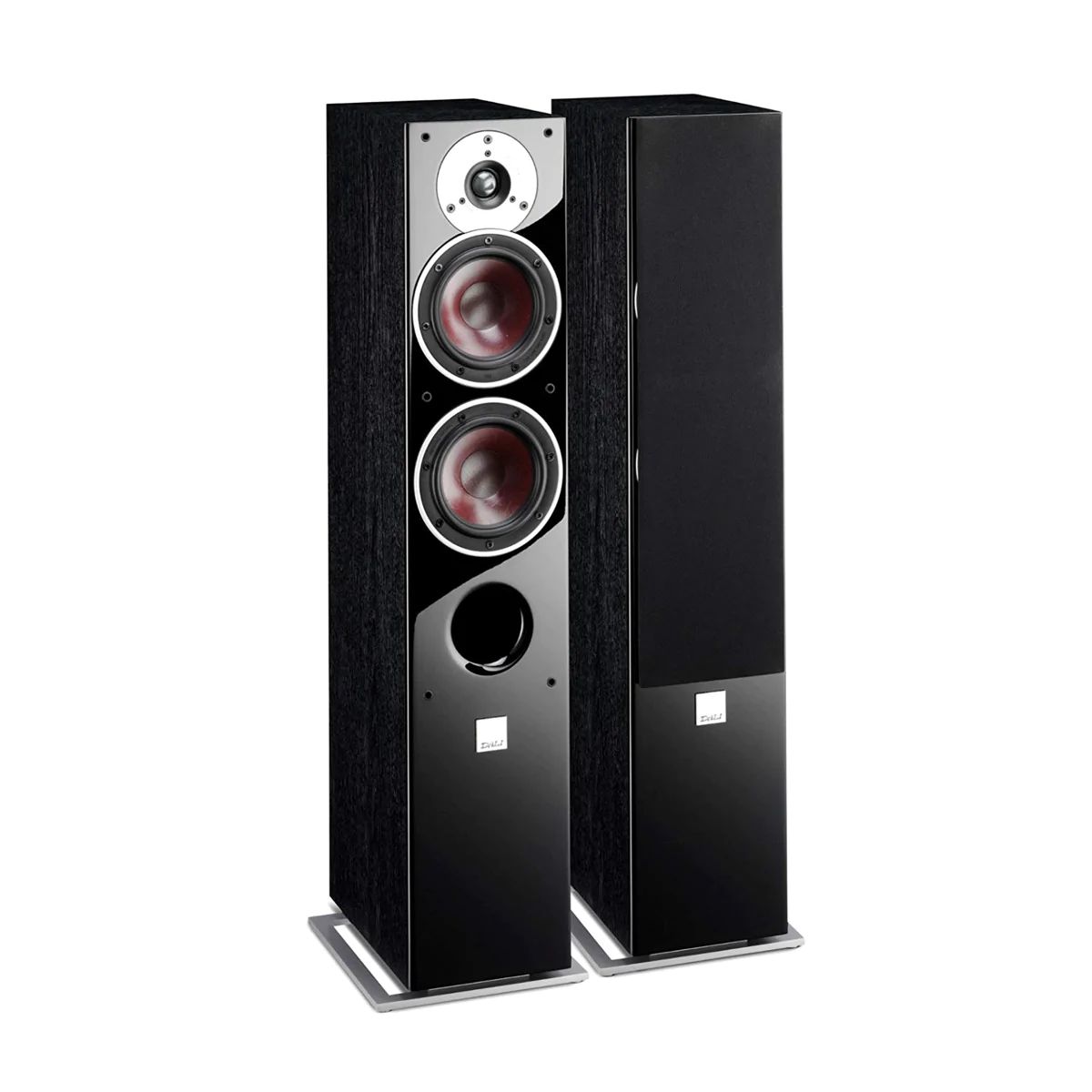

With a clear heritage from our high end series, the lightweight dome tweeter in the ZENSOR 5 AX offers best in class resolution. It features timing due to the position of the tweeter, minimised compression and increased power handling, thanks to the vented voice coil former. The damping material under the dome minimises reflections from the pole piece.
Both 5.25 inch woofers in the ZENSOR 5 AX feature 4-layer voice coils for maximum control of the wood fibre cone. The low loss construction is ensured by a rigid metal basket and meticulously optimised cone. The result is bass authority, well-controlled reproduction of micro-detail and great transient capabilities.
SKU: Dali Zensor 5 AX Floor Standin
Product series | ZENSOR |
Frequency Range (+/-3 dB) [Hz] | 43 - 26,500 |
Maximum SPL [dB] | 106 |
Crossover Frequency [Hz] | 2,400 Hz |
Crossover Principle | 2-way |
High frequency driver, Quantity | 1 x 25 mm |
High frequency driver, Diaphragm type | Soft Textile Dome |
Low frequency driver, Quantity | 2 x 5.25" |
Low frequency driver, Diaphragm type | Wood Fibre Cone |
Enclosure type | Bass Reflex |
Amplifier Type | Fully digital class D (Open loop type) |
Input Impedance [ohms] | 12.6k |
Connection Input |
|
Connection Output | SUB Out |
Wireless Input(s) | Bluetooth™ Apt-X |
Max. Digital Resolution [bits/KHz] | 24 / 96 |
Magnetic Shielding | No |
Recommended Placement | Floor |
Recommended Distance From Wall [cm] | 20 - 80 |
Max. Power Consumption [W] | 160W |
Standby Power Consumption [W] | <0.5W |
Dimensions With Base (HxWxD) [mm] | 825 x 162 x 282 |
Weight [kg] | 11.0 |
Accessories Included |
|
Analogue Input Sensitivity [mV] | 300 |
Continous IEC Amplifier Output [RMS watt] | 2 x 50W |
Input Mains Voltage [Volts] | Universal mains 100 - 240V |
