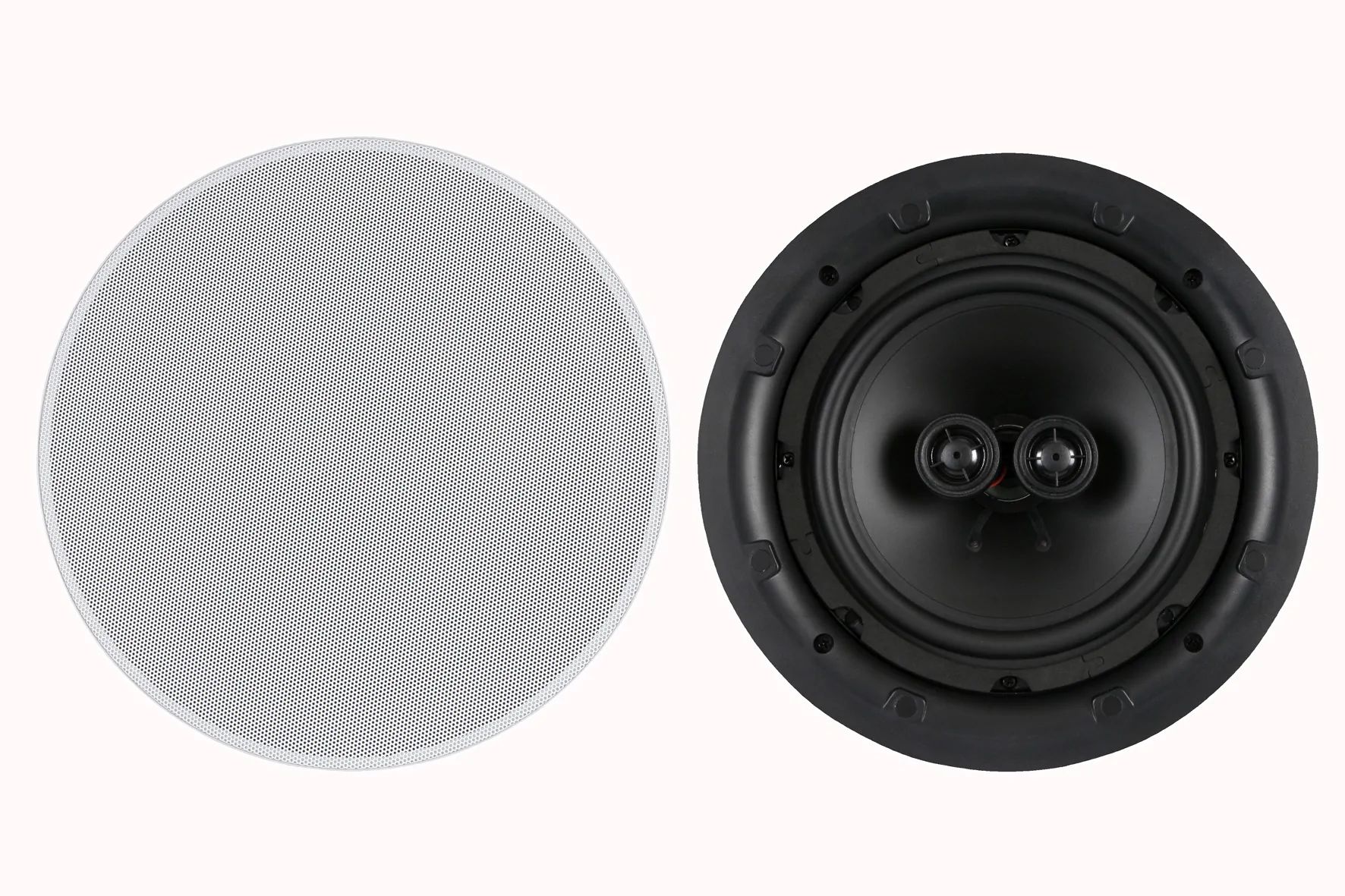

DLS IC824 for ceiling or wall mount in round shape. This model hasa a magnetic grille frame. The speakers are made with only high class components making them suitable for use in most environments. Use as extra speakers in your kitchen or bath room. They can also be used as surround speakers in home cinema. If you have a surround amplifier with multi room function these speakers are very well suited for this application.
IC 824 has dual high class silk dome tweeter for better off-axis sound. The passive filter splits the signal between bass & tweeter.
The speaker has selectable tweeter level in two steps.
Comes in pairs.
SKU: DLS IC824 - In ceiling speaker
Categories: HOME THEATRE, SPEAKERS, In-Ceiling/Atmos Speakers
| Description / type | 2-way coaxial for ceiling mount |
| Impedance | 4 ohm |
| Sensitivity | 90 db (1W/1m) |
| Frequency range | 42 - 20 000 Hz |
| Recommended amplifier | 20-120 Watt |
| Tweeter | 2 x 20 mm soft dome tweeters |
| Woofer size | 20 cm (8") |
| Cone material | Polypropylene with rubber surround |
| Outer dimensions | 280 mm /11" |
| Cutout dimensions | 245 mm / 9,65" |
| Mounting depth | 110 mm / 4,33" |
| Baffle thickness | 10-33 mm |
| Off-axis angle | +- 45 degrees in distributed audio systems |
| Finish / colour | White RAL9003, black basket |
| Weight | 2,3 kg / 5,07 lbs |
| EAN Bar code | 7331644624400 |
