Description: Support 1.0MP and 2.0MP Both CCTV Camera • H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras • Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input (4-in-1 DVR and support almost all Company HD CCTV) • Support Cloud storage(One Drive, Google Drive or Drop Box) • HDMI output at up to 4K (3840 × 2160) resolution • Support 2 HDD upto 10TB;Total upto 20TB; • Two Years Warranty!

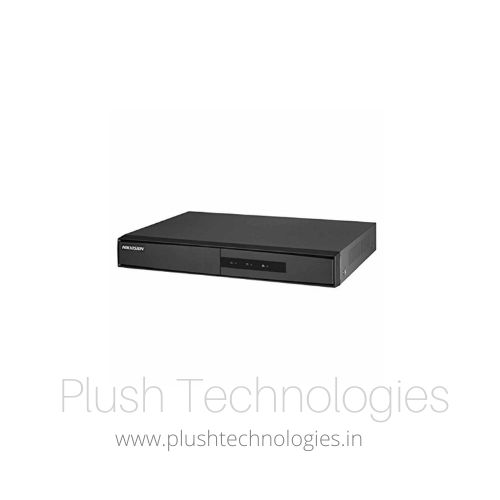

HIKVISION HD 32 Channel 4K H.265 Hybrid DVR (DS-7B32HQHI-K2) Video/Audio Input Audio Input: 1-ch Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 Analog and HD-TVI video input: 32-ch,BNC interface (1.0Vp-p, 75 Ω)connection Supported camera types: Support HDTVI input: 4MP,3 MP, 1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz, 720P/50Hz, 720p/60HzNote: The 3 MP signal input is only available for channel 1/2/3/4.Support AHD input: 4MP,1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30HzSupport CVI input: 1080p25, 1080p30, 720p25, 720p30support CVBS input Video Input Interface: BNC (1.0 Vp-p, 75Ω) Audio Compression: G.711u Two-way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input) Video/Audio Output CVBS Output: 1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704x576,NTSC:704x480 HDMI/VGA Output: VGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60HzHDMI: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz Recording resolution: When 1080p Lite mode not enabled:4 MP lite/3 MP/1080p/1080p lite/720p/WD1/4CIF/VGA/CIFWhen 1080p Lite mode enabled:4 MP lite/3 MP/1080p lite/720p/720p lite/WD1/4CIF/VGA/CIF Frame Rate: Main stream:When 1080p Lite mode not enabled:For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)For 3 MP stream access: 3 MP/1080p/720p/WD1/4CIF/VGA/CIF@15fpsFor 1080p stream access: 1080p/720p@15fps; 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)When 1080p Lite mode enabled:For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p lite/WD1/4CIF/VGA/CIF@25fps (P)/30fps(N)For 3 MP stream access: 3 MP/1080p lite/720p lite/WD1/4CIF/VGA/CIF@15fpsFor 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Video Bit Rate: 32 Kbps-6 Mbps Stream Type: Video/Video&Audio Two-way Audio: 1-ch, RCA (2.0 Vp-p, 1 kΩ) (independent) Audio Output: 1-ch RCA(Linear, 1kΩ) Dual Stream: Support Synchronous Playback: 16-ch Network management Remote connections: 128 Network protocols: TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS,ONVIF Hard Disk Driver Interface Type: 2 SATA Interfaces Capacity: Up to 6TB capacity for each disk External Interface Network Interface: 1; 10M / 100M / 1000M self-adaptive Ethernet interface USB Interface: 1 USB 2.0 Interface & 1 USB 3.0 Interface General Power Supply: 12 VDC Consumption: ≤ 65W(without hard disks) Working Temperature: -10 oC to +55 oC (+14 oF to +131 oF) Working Humidity: 10% to 90% Dimensions: 380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch) Weight: ≤ 2 kg (4.4 lb)
